Phoenix Contact MCDN 1,5 4- G1-3,5 P26THR Order No. 1953732 Product Data Manual - 10-position Version
Summary
This technical profile details a robust modular terminal block designed for connecting electrical circuits in industrial applications. Ideal for engineers and designers, this manual provides comprehensive specifications, covering electrical ratings (up to 160V/250V), physical dimensions, compliant assembly methods (SMD/THT/THR), and crucial accessories like marker cards and keying profiles. Use this guide for reliable integration into control panels requiring adherence to EN-VDE standards and global safety certifications.

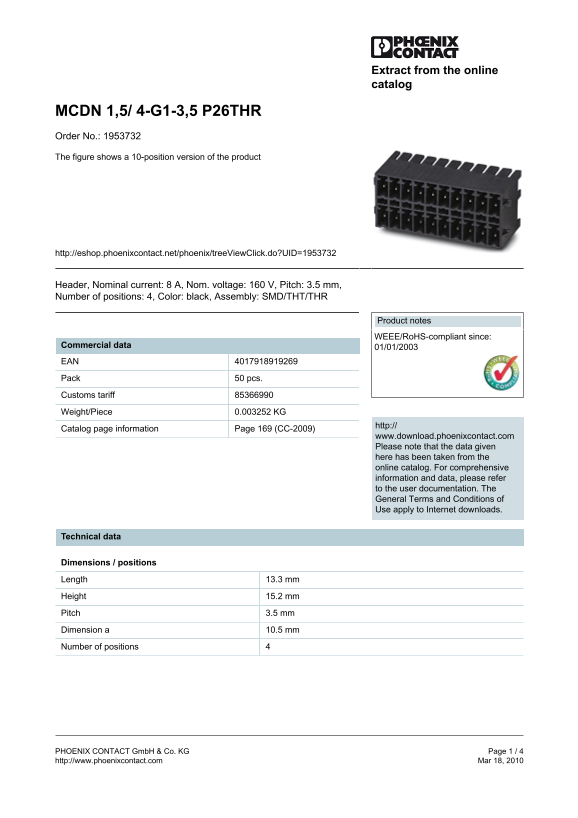

Page 1 Text Content
Extract from the online catalog
MCDN 1,5/ 4-G1-3,5 P26THR Order No.: 1953732 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1953732
Header, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.5 mm, Number of positions: 4, Color: black, Assembly: SMD/THT/THR
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.003252 KG
http://
Catalog page information Page 169 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Length 13.3 mm Height 15.2 mm Pitch 3.5 mm Dimension a 10.5 mm Number of positions
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 4 http://www.phoenixcontact.com Mar 18, 2010
Page Summary Contents For Phoenix Contact MCDN 1,5 4- G1-3,5 P26THR Order No. 1953732 Product Data Manual - 10-position Version
Manual Details
| Brand | Phoenix |
|---|---|
| Pages | 4 |
| File Size | 115.48 KB |
| Published | June 01, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the nominal voltage and current rating for this header?
The nominal voltage is 160 V, offering a maximum load of 8 A per position.
What are the key physical dimensions and pitch?
It has a pitch of 3.5 mm, with overall dimensions measuring Length 13.3 mm and Height 15.2 mm.
What is the rated surge voltage for the device?
The rated surge voltage is consistently 2.5 kV across III/3, III/2, and II/2 ratings.
Are there standard marker cards available for labeling?
Yes, accessories like 0805030 SK (White) and 0804109 SK are available marker cards.
