This technical documentation provides comprehensive specifications for a robust electrical plug component designed for reliable power connection in various industrial and commercial settings. The guide details key performance metrics, including nominal current ratings up to 12 A and voltages up to 500 V. It covers essential dimensions, compliance certifications (UL/CUL), installation guidelines, and technical compatibility data critical for circuit design and automation engineering professionals.

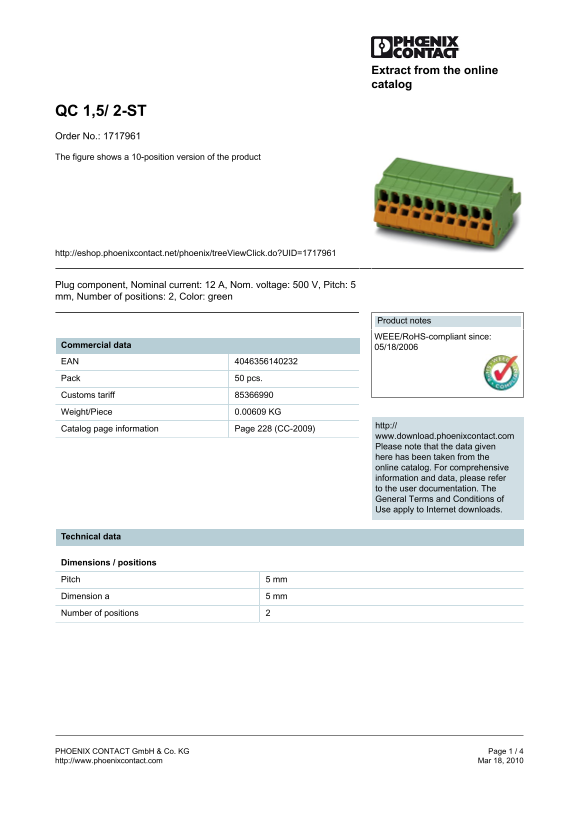

Page 1 Text Content
Extract from the online catalog
QC 1,5/ 2-ST Order No.: 1717961 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1717961
Plug component, Nominal current: 12 A, Nom. voltage: 500 V, Pitch: 5 mm, Number of positions: 2, Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 05/18/2006 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.00609 KG
http://
Catalog page information Page 228 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 5 mm Dimension a 5 mm Number of positions
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 4 http://www.phoenixcontact.com Mar 18, 2010
Page Summary Contents For PHOENIX CONTACT QC 1,5 2-Position Order No. 1717961 Product Data Sheet Manual
Manual Details
| Brand | Phoenix |
|---|---|
| Pages | 4 |
| File Size | 96.51 KB |
| Published | May 29, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the nominal current and voltage of this plug component?
The nominal current (I) is 12 A, and the nominal voltage (U) is 500 V.
What are the conductor cross-section requirements for wiring?
For solid conductors, the range is min. 0.2 mm² to max. 1.5 mm², and for stranded conductors, it's also 0.2 mm² to 1.5 mm².
What certifications does this product possess?
It holds CUL and UL certifications, with specific ratings varying by standard (e.g., UL Nominal voltage U 300 V N).
How is the insulating material classified regarding flammability?
The insulating material has a PA classification of UL 94 V0.
