Phoenix Contact -QC 1,5 4-ST Data Handbook/Manual
Summary
This modular plug component provides a robust and standardized electrical connection system, engineered for industrial automation and complex control panel applications. Rated up to 12A and 500V with a consistent 5 mm pitch, it ensures reliable wiring in demanding environments. The accompanying technical data sheet details critical specifications, including dimensional drawings, various insulation ratings (UL/CUL certified), suitable conductor cross-sections, and application guidelines. It is essential for electrical engineers and technicians designing or upgrading systems requiring highly dependable modular connectivity solutions.

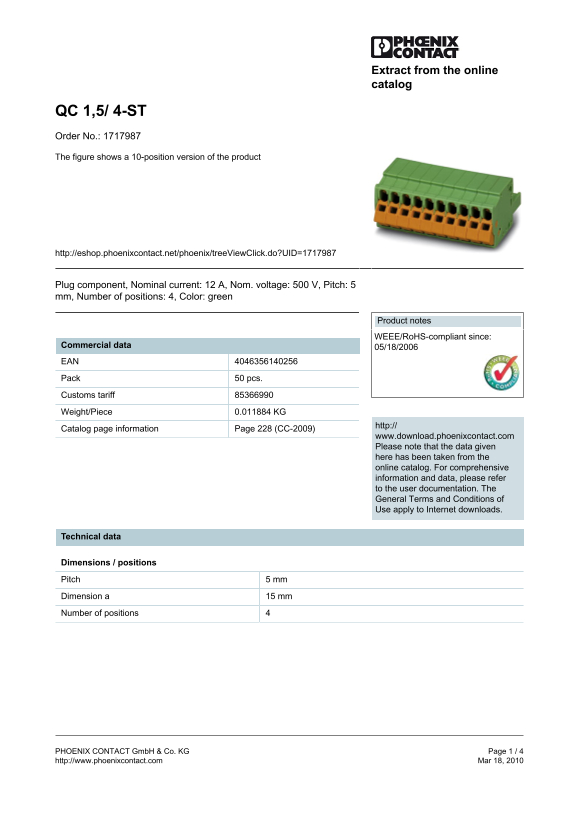

Page 1 Text Content
Extract from the online catalog
QC 1,5/ 4-ST Order No.: 1717987 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1717987
Plug component, Nominal current: 12 A, Nom. voltage: 500 V, Pitch: 5 mm, Number of positions: 4, Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 05/18/2006 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.011884 KG
http://
Catalog page information Page 228 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 5 mm Dimension a 15 mm Number of positions
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 4 http://www.phoenixcontact.com Mar 18, 2010
Page Summary Contents For Phoenix Contact -QC 1,5 4-ST Data Handbook/Manual
Manual Details
| Brand | Phoenix |
|---|---|
| Pages | 4 |
| File Size | 96.39 KB |
| Published | May 29, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the maximum recommended wire cross sections?
For stranded conductors, the minimum size is 0.2 mm² and the maximum is 1.5 mm². For solid conductors, both min and max are also 0.2 mm² and 1.5 mm², respectively.
What is the rated voltage for different operational standards?
The product has a Rated voltage (II/2) of 1000 V and a connection rating up to 630 V or 6 kV, depending on the specified standard.
Which certifications are available for this component?
This product holds CUL and UL certifications. The UL standards specify nominal voltages of U 300 V N and P.
Is there a limit to the current load?
The maximum load current is specified as 12 A, based on the connection data provided.
