Phoenix Contact QC 1,5 8-Position Order No. 1718025 - Data Manual / Technical Specifications
Summary
This plug component is engineered for robust electrical connections, featuring 8 positions and handling nominal currents up to 12A at 500V. The accompanying documentation provides detailed technical data, including critical electrical ratings, dimensional specifications, connection guidelines, and compliance certifications (UL/CUL). It is essential reading for electrical engineers, panel builders, and automation professionals designing circuits requiring reliable, high-performance interconnectivity solutions.
Page 1 Text Content

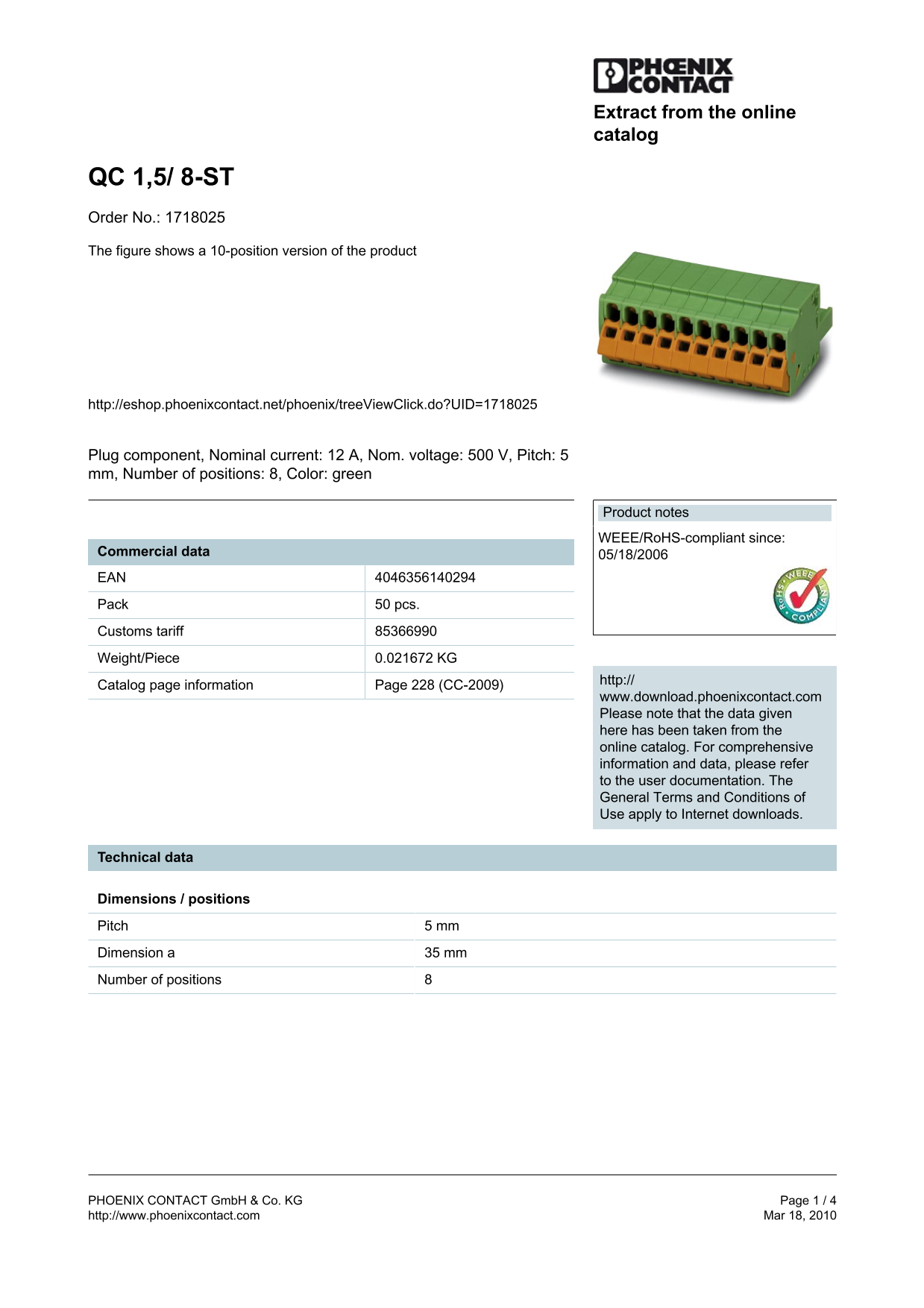

Extract from the online catalog
QC 1,5/ 8-ST Order No.: 1718025 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1718025
Plug component, Nominal current: 12 A, Nom. voltage: 500 V, Pitch: 5 mm, Number of positions: 8, Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 05/18/2006 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.021672 KG
http://
Catalog page information Page 228 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 5 mm Dimension a 35 mm Number of positions
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 4 http://www.phoenixcontact.com Mar 18, 2010
