Phoenix Contact MCD 1,5 8- G1-3,81 Order No. 1843130 Product Data Manual - Shown is a 10-position version of the product.
Summary
This robust 8-position soldering connector header is designed for durable electrical interconnection in industrial automation systems, rated up to 8A and 160V. The accompanying document provides comprehensive technical data sheets and diagrams, including precise dimensions, detailed connection specifications, and global compliance certifications (UL, CSA) required by professionals. It serves as an essential resource for electrical engineers and technicians needing reliable components and compatible accessories to build or expand complex control wiring solutions.
Page 1 Text Content
Extract from the online catalog

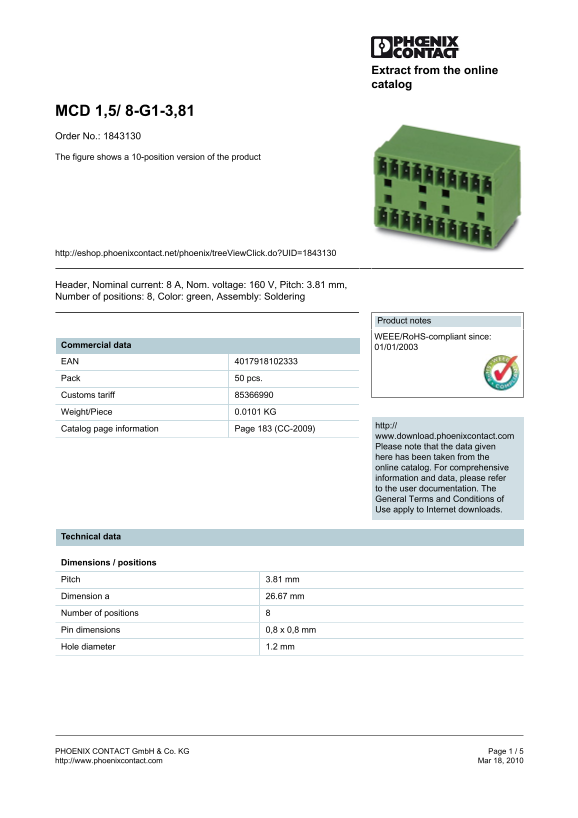

MCD 1,5/ 8-G1-3,81 Order No.: 1843130 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1843130
Header, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.81 mm, Number of positions: 8, Color: green, Assembly: Soldering
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.0101 KG
http://
Catalog page information Page 183 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 3.81 mm Dimension a 26.67 mm Number of positions Pin dimensions 0,8 x 0,8 mm Hole diameter 1.2 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 5 http://www.phoenixcontact.com Mar 18, 2010
