Phoenix Contact MC 1,5 5-G-3,81 Order No. 1803303 Product Data Handbook - 10-position Version Illustration: A 10-position variant of the item is shown
Summary
Discover robust performance with this multi-pole terminal header designed for critical industrial electrical connections. This component facilitates reliable power distribution, handling up to 8 A at 160 V across a precise 3.81 mm pitch. The accompanying technical documentation provides comprehensive data, including dimensional drawings, diverse connection options (soldering, screw, crimp), and compatibility details for system integration. Essential reading for electrical engineers, industrial automation designers, and technicians who require high-quality, certified interconnect solutions (UL/CSA compliant).
Page 1 Text Content
Extract from the online catalog

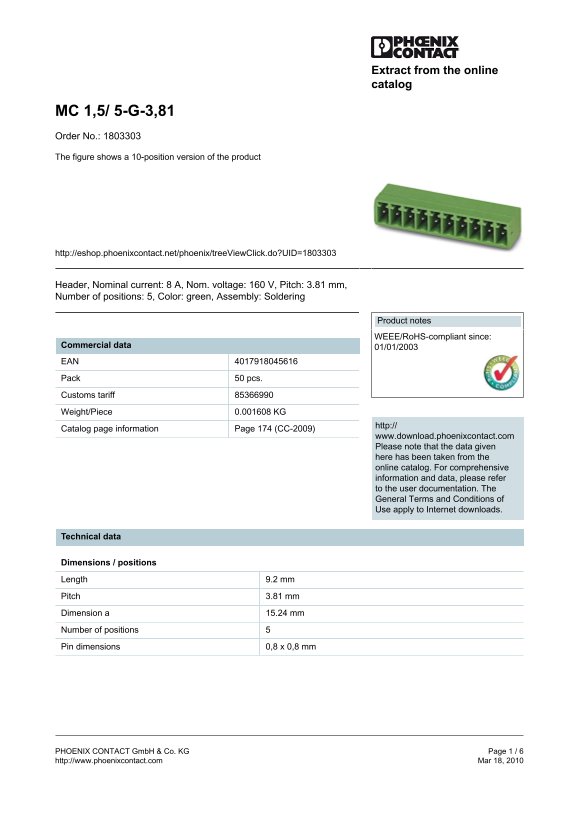

MC 1,5/ 5-G-3,81 Order No.: 1803303 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1803303
Header, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.81 mm, Number of positions: 5, Color: green, Assembly: Soldering
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.001608 KG
http://
Catalog page information Page 174 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Length 9.2 mm Pitch 3.81 mm Dimension a 15.24 mm Number of positions Pin dimensions 0,8 x 0,8 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 6 http://www.phoenixcontact.com Mar 18, 2010
