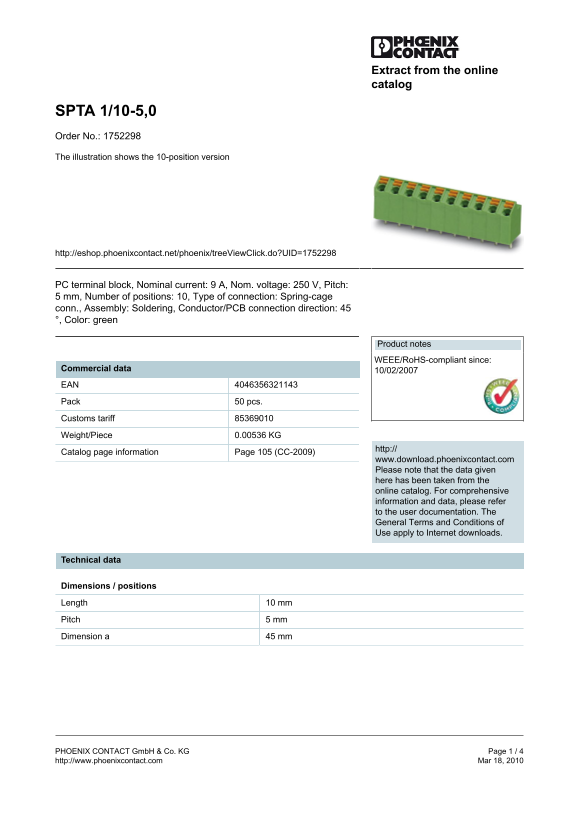

SPTA 1/10-5,0 Order No.: 1752298 The illustration shows the 10-position version
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1752298
PC terminal block, Nominal current: 9 A, Nom. voltage: 250 V, Pitch: 5 mm, Number of positions: 10, Type of connection: Spring-cage conn., Assembly: Soldering, Conductor/PCB connection direction: 45 °, Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 10/02/2007 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.00536 KG
http://
Catalog page information Page 105 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Length 10 mm Pitch 5 mm Dimension a 45 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 4 http://www.phoenixcontact.com Mar 18, 2010
