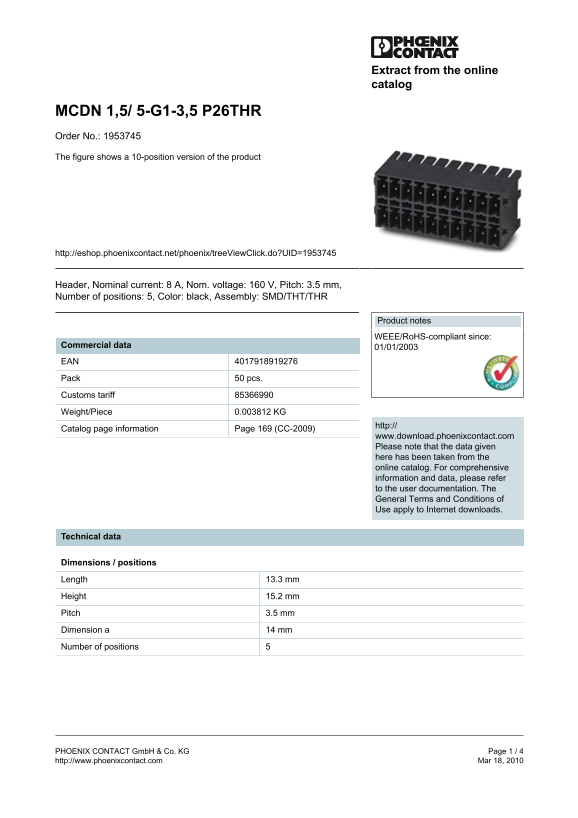

Phoenix Contact MCDN 1,5 5-Module G1-3,5 Output P26THR Order No. 1953745 Product Image: A 10-position Variant Depicted
Summary
Engineered for industrial automation and control systems, this guide provides comprehensive technical specifications and installation details for high-quality electrical terminal headers and connector blocks. It covers critical data such as operational voltage ratings (up to 250V), maximum current capacity of 8A, detailed dimensions, and adherence to international standards like UL and VDE. Ideal for engineers, industrial electricians, and system designers requiring robust, reliable connections for panel building and circuit integration.
Page 1 Text Content
Extract from the online catalog
MCDN 1,5/ 5-G1-3,5 P26THR Order No.: 1953745 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1953745
Header, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.5 mm, Number of positions: 5, Color: black, Assembly: SMD/THT/THR
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.003812 KG
http://
Catalog page information Page 169 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Length 13.3 mm Height 15.2 mm Pitch 3.5 mm Dimension a 14 mm Number of positions
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 4 http://www.phoenixcontact.com Mar 18, 2010
