Phoenix Contact PC 5 6- G- 7,62 Product Order No. 1720505 Figure: A 5-position version of the product - Data Handbook / Owner's Manual
Summary
This comprehensive guide provides detailed specifications for high-performance terminal blocks, designed for robust industrial wiring applications. Covering dimensions, electrical ratings (up to 41 A/500 V), and assembly instructions, this manual serves system integrators, engineers, and control panel designers who require reliable components meeting global certifications like UL and RoHS standards. Use this resource for precise installation guidance and material sourcing information.
Page 1 Text Content
Extract from the online catalog

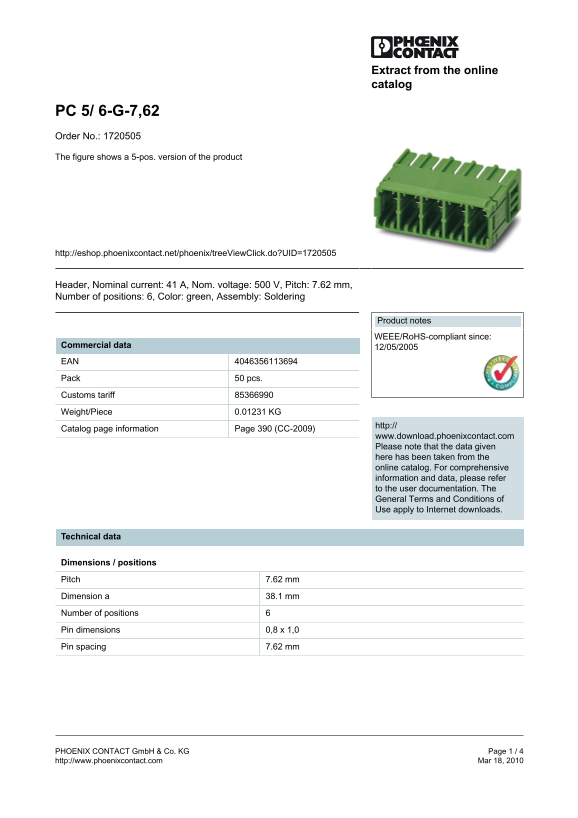

PC 5/ 6-G-7,62 Order No.: 1720505 The figure shows a 5-pos. version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1720505
Header, Nominal current: 41 A, Nom. voltage: 500 V, Pitch: 7.62 mm, Number of positions: 6, Color: green, Assembly: Soldering
Product notes WEEE/Ro HS-compliant since:
Commercial data 12/05/2005 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.01231 KG
http://
Catalog page information Page 390 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 7.62 mm Dimension a 38.1 mm Number of positions Pin dimensions 0,8 x 1,0 Pin spacing 7.62 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 4 http://www.phoenixcontact.com Mar 18, 2010
