Phoenix Contact PCV 5 4-Port G-7,62 Order No. 1720592 Product Data Sheet Manual
Summary
This is a high-performance terminal block connector engineered for secure electrical connections up to 41 A and 500 V. The accompanying documentation provides essential specifications, including detailed dimensions (Pitch: 7.62 mm), material ratings, installation guides, and compliance certifications (UL/CUL). It is designed for professionals—such as industrial engineers and electricians—who require reliable, safe, and standardized components for electrical assembly and control panel building.
Page 1 Text Content
Extract from the online catalog

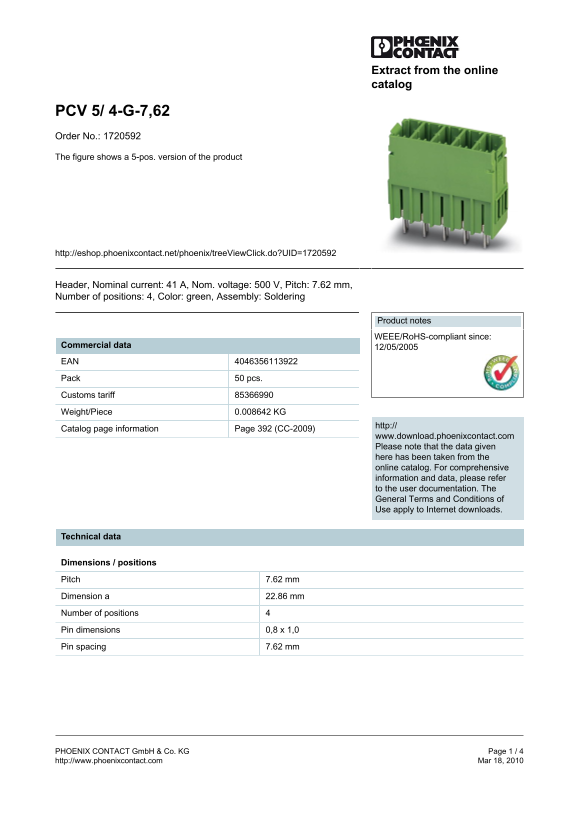

PCV 5/ 4-G-7,62 Order No.: 1720592 The figure shows a 5-pos. version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1720592
Header, Nominal current: 41 A, Nom. voltage: 500 V, Pitch: 7.62 mm, Number of positions: 4, Color: green, Assembly: Soldering
Product notes WEEE/Ro HS-compliant since:
Commercial data 12/05/2005 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.008642 KG
http://
Catalog page information Page 392 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 7.62 mm Dimension a 22.86 mm Number of positions Pin dimensions 0,8 x 1,0 Pin spacing 7.62 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 4 http://www.phoenixcontact.com Mar 18, 2010
