Phoenix Contact PC 4 HV 8-ST-7,62 Data Sheet / Manual Order No. 1880054
Summary
This manual provides detailed technical specifications for the PC 4 HV series plug component terminal block, designed for robust electrical connections up to 800V and 20A. It serves as a comprehensive guide for engineers and industrial installers, covering functional data, dimensional drawings, connection guidelines, required accessories (like marker cards), and tools. Use this resource to ensure correct installation, proper wiring practices, and compliance with industry standards.

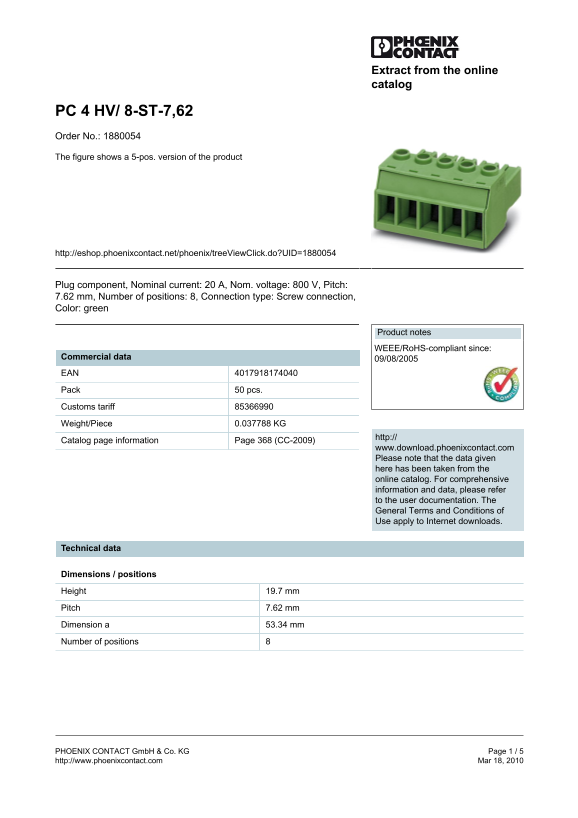

Page 1 Text Content
Extract from the online catalog
PC 4 HV/ 8-ST-7,62 Order No.: 1880054 The figure shows a 5-pos. version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1880054
Plug component, Nominal current: 20 A, Nom. voltage: 800 V, Pitch: 7.62 mm, Number of positions: 8, Connection type: Screw connection, Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 09/08/2005 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.037788 KG
http://
Catalog page information Page 368 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Height 19.7 mm Pitch 7.62 mm Dimension a 53.34 mm Number of positions
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 5 http://www.phoenixcontact.com Mar 18, 2010
Page Summary Contents For Phoenix Contact PC 4 HV 8-ST-7,62 Data Sheet / Manual Order No. 1880054
Manual Details
| Brand | Phoenix |
|---|---|
| Pages | 5 |
| File Size | 136.62 KB |
| Published | June 02, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the nominal voltage and current ratings for this terminal block?
The product features a nominal voltage of 800 V and handles a maximum load current of 20 A.
What is the required range for solid conductor cross sections?
Solid conductors must have a minimum cross section of 0.2 mm² up to a maximum of 4 mm².
What torque settings should be used when tightening the screw connections?
The recommended tightening torque is between a minimum of 0.5 Nm and a maximum of 0.6 Nm.
Does this product meet relevant environmental compliance standards?
Yes, it is stated as WEEE/RoHS-compliant and bears multiple certifications including UL and CSA.
