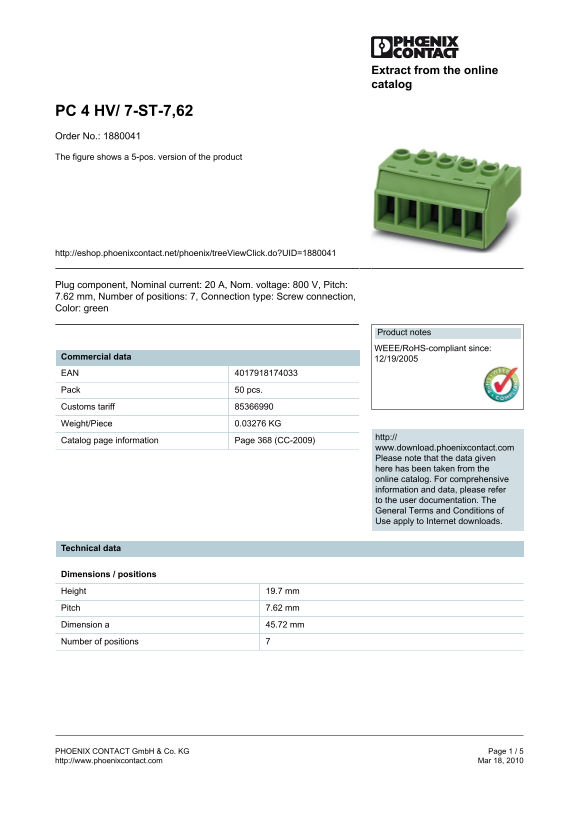

Page 1 Text Content
Extract from the online catalog
PC 4 HV/ 7-ST-7,62 Order No.: 1880041 The figure shows a 5-pos. version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1880041
Plug component, Nominal current: 20 A, Nom. voltage: 800 V, Pitch: 7.62 mm, Number of positions: 7, Connection type: Screw connection, Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 12/19/2005 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.03276 KG
http://
Catalog page information Page 368 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Height 19.7 mm Pitch 7.62 mm Dimension a 45.72 mm Number of positions
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 5 http://www.phoenixcontact.com Mar 18, 2010
Page Summary Contents For Phoenix Contact PC 4 HV 7-ST-7,62 Data Sheet
Manual Details
| Brand | Phoenix |
|---|---|
| Pages | 5 |
| File Size | 136.29 KB |
| Published | June 02, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the nominal current and voltage ratings?
The nominal current is 20 A, and the nom. voltage is 800 V.
What is the required tightening torque for installation?
Tightening torque must be applied between a minimum of 0.5 Nm and a maximum of 0.6 Nm.
What conductor cross sections can I use for solid wiring?
Solid conductors must have a cross section ranging from a minimum of 0.2 mm² to a maximum of 4 mm².
