Phoenix Contact PC 5 6-STCL-7,62 Data Sheet Manual
Summary
This professional electrical plug component is designed for demanding industrial applications, offering a nominal current of 41 A at up to 1000 V in a compact 7.62 mm pitch design. The accompanying manual provides comprehensive technical specifications, including detailed dimensional drawings, connection data for various conductor types and sizes, required tightening torques, safety certifications (UL/CUL), and derating curves. This resource is essential for electrical engineers, automated system integrators, and maintenance professionals who require reliable, high-performance modular connections from Phoenix Contact.
Page 1 Text Content
Extract from the online catalog

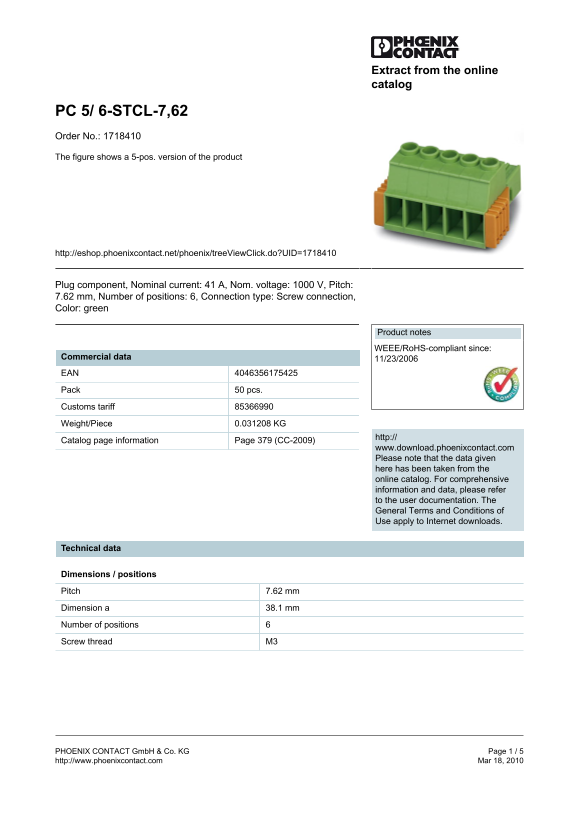

PC 5/ 6-STCL-7,62 Order No.: 1718410 The figure shows a 5-pos. version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1718410
Plug component, Nominal current: 41 A, Nom. voltage: 1000 V, Pitch: 7.62 mm, Number of positions: 6, Connection type: Screw connection, Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 11/23/2006 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.031208 KG
http://
Catalog page information Page 379 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 7.62 mm Dimension a 38.1 mm Number of positions Screw thread M3
