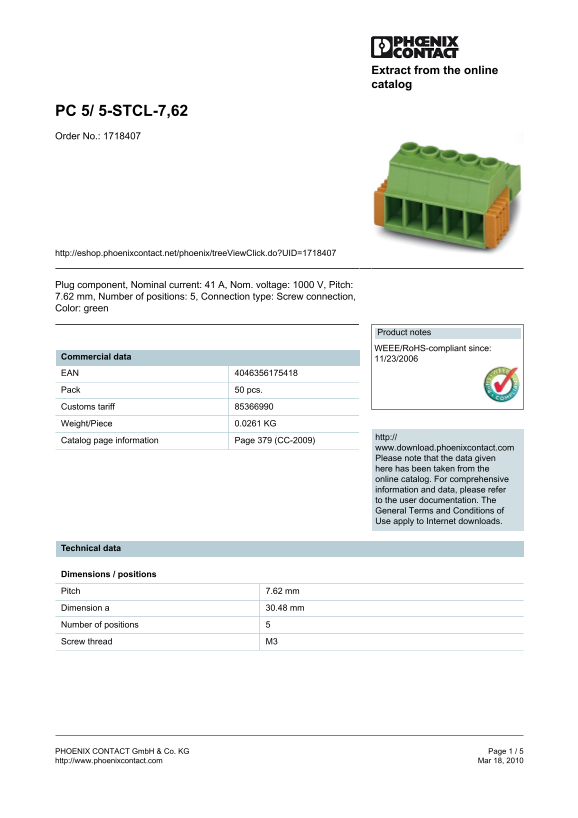

PC 5/ 5-STCL-7,62 Order No.: 1718407
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1718407
Plug component, Nominal current: 41 A, Nom. voltage: 1000 V, Pitch: 7.62 mm, Number of positions: 5, Connection type: Screw connection, Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 11/23/2006 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.0261 KG
http://
Catalog page information Page 379 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 7.62 mm Dimension a 30.48 mm Number of positions Screw thread M3
