Phoenix Contact SPC 5 3-STCL-7,62 Data Sheet / Manual
Summary
This highly reliable plug component is designed for industrial applications requiring secure, high-current electrical connections up to 41A at 1000V. Featuring a robust spring-cage connection and standardized 7.62 mm pitch, it ensures optimal performance in demanding environments. The accompanying manual provides comprehensive technical data, including detailed cross-section compatibility charts (solid/stranded), derating curves, and compliance information (UL, RoHS). It is essential documentation for electrical engineers and automation specialists designing panels or systems that require precise selection based on various current loads and safety standards.
Page 1 Text Content
Extract from the online catalog

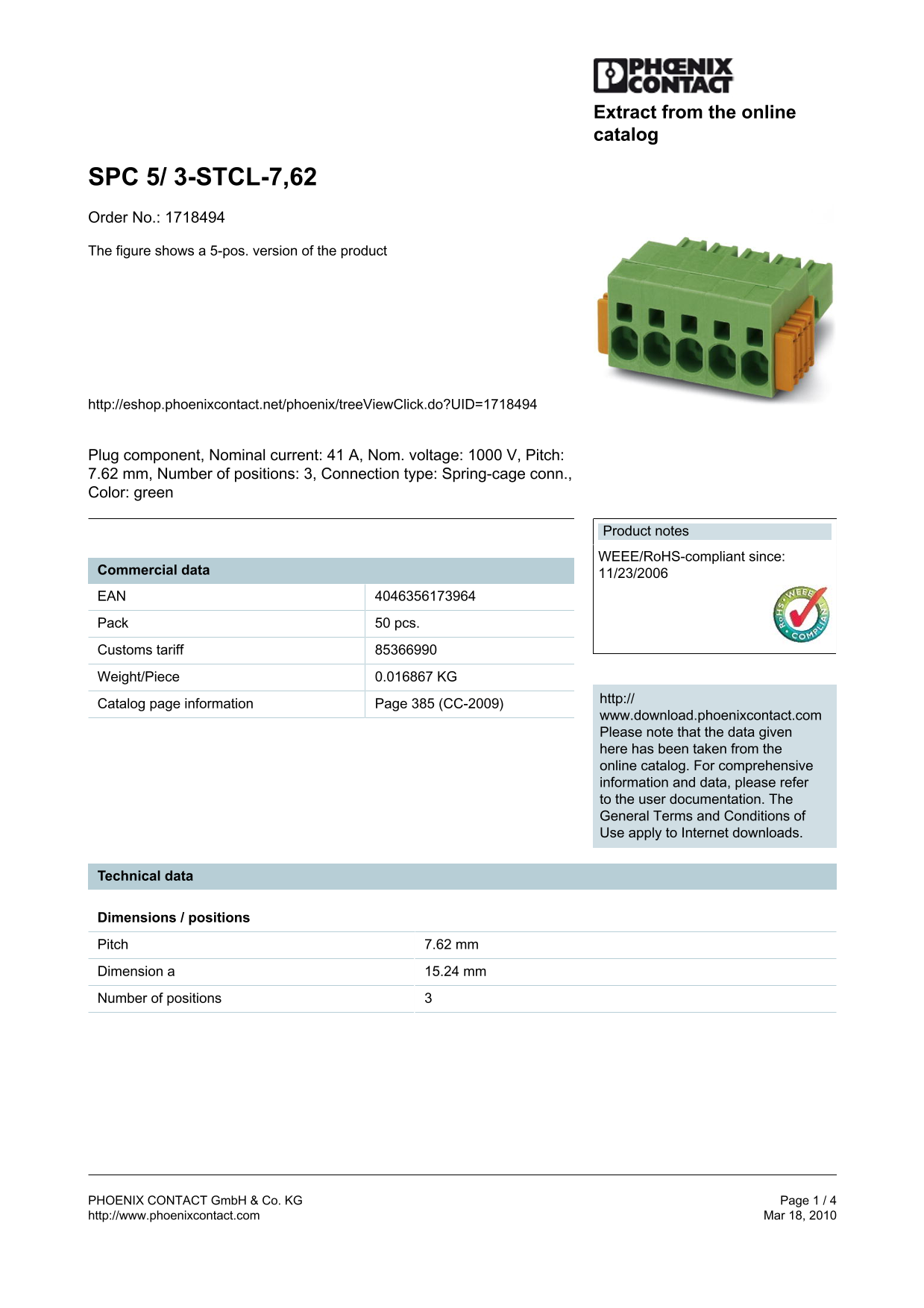

SPC 5/ 3-STCL-7,62 Order No.: 1718494 The figure shows a 5-pos. version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1718494
Plug component, Nominal current: 41 A, Nom. voltage: 1000 V, Pitch: 7.62 mm, Number of positions: 3, Connection type: Spring-cage conn., Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 11/23/2006 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.016867 KG
http://
Catalog page information Page 385 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 7.62 mm Dimension a 15.24 mm Number of positions
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 4 http://www.phoenixcontact.com Mar 18, 2010
