This robust plug component is designed for reliable electrical connections in demanding industrial applications. Rated for 41A at 1000V, it features a 5-position layout and spring-cage connection technology, built with durable PA insulating material. The accompanying technical manual provides comprehensive specifications, including precise dimensions, detailed requirements for various conductor cross sections (solid/stranded), full electrical ratings (UL/CUL certified), and compatibility data essential for professional system design, making it ideal for engineers selecting high-performance terminal solutions.

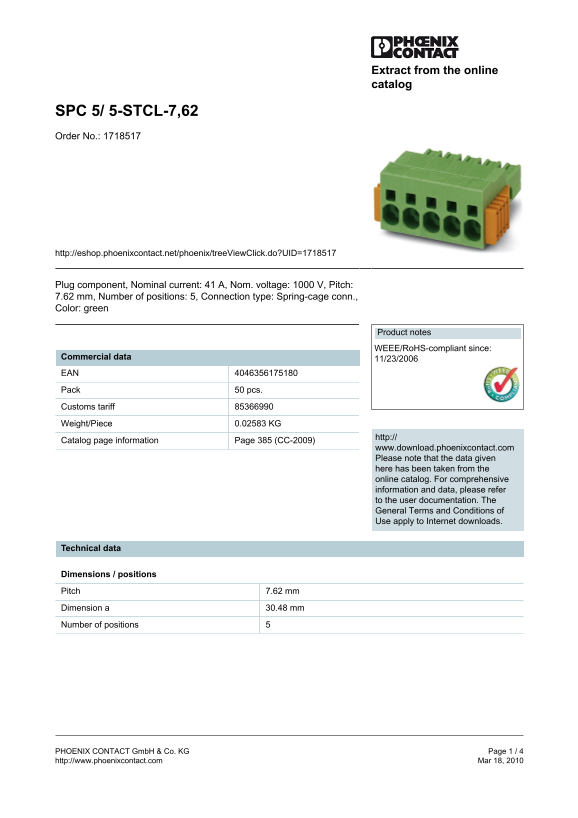

Page 1 Text Content
Extract from the online catalog
SPC 5/ 5-STCL-7,62 Order No.: 1718517
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1718517
Plug component, Nominal current: 41 A, Nom. voltage: 1000 V, Pitch: 7.62 mm, Number of positions: 5, Connection type: Spring-cage conn., Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 11/23/2006 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.02583 KG
http://
Catalog page information Page 385 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 7.62 mm Dimension a 30.48 mm Number of positions
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 4 http://www.phoenixcontact.com Mar 18, 2010
Page Summary Contents For Phoenix Contact - SPC 5 5-STCL-7,62 Data Manual
Manual Details
| Brand | Phoenix |
|---|---|
| Pages | 4 |
| File Size | 130.16 KB |
| Published | June 01, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the nominal voltage and current rating of this plug component?
The nominal voltage is 1000 V, and it handles a nominal current of 41 A.
How wide are the positions on the module?
The pitch distance (between positions) is specified as 7.62 mm.
What conductor types and sizes can be accommodated?
It accepts solid conductors from 0.2 to 10 mm², or stranded conductors up to 6 mm².
Is the component compliant with recognized safety standards?
Yes, it is CUL and UL approved, and it is also WEEE/RoHS-compliant.
