Phoenix Contact - GMSTB 2,5 5-ST-7,62 Data Manual
Summary
This high-quality plug terminal block is designed for robust electrical panel assembly, supporting up to 12A at 400V and featuring a precise 7.62 mm pitch across five positions. The accompanying manual serves as a comprehensive technical resource, detailing dimensional specifications, compliance ratings (UL/CSA), and detailed connection guidelines for various conductor types—from solid to stranded wires. It is an essential component for electrical engineers and technicians building reliable industrial control systems that meet industry standards.

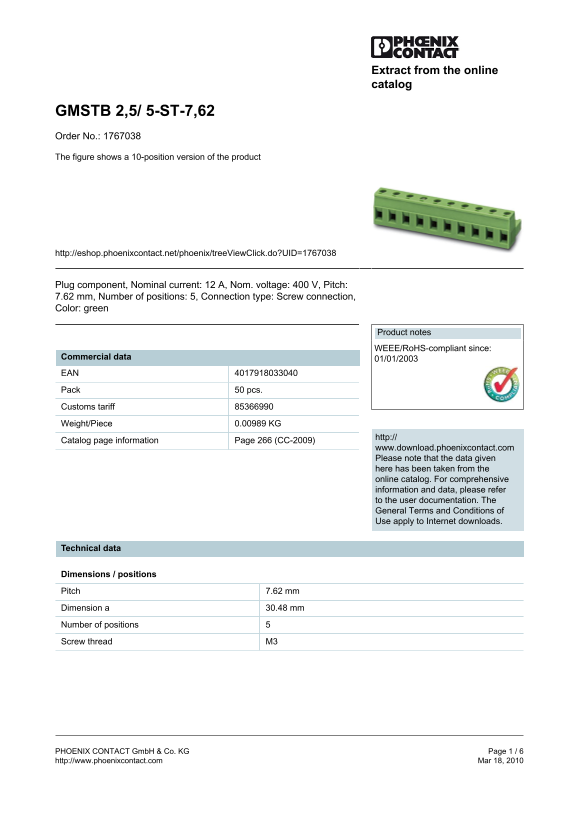

Page 1 Text Content
Extract from the online catalog
GMSTB 2,5/ 5-ST-7,62 Order No.: 1767038 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1767038
Plug component, Nominal current: 12 A, Nom. voltage: 400 V, Pitch: 7.62 mm, Number of positions: 5, Connection type: Screw connection, Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.00989 KG
http://
Catalog page information Page 266 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 7.62 mm Dimension a 30.48 mm Number of positions Screw thread M3
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 6 http://www.phoenixcontact.com Mar 18, 2010
