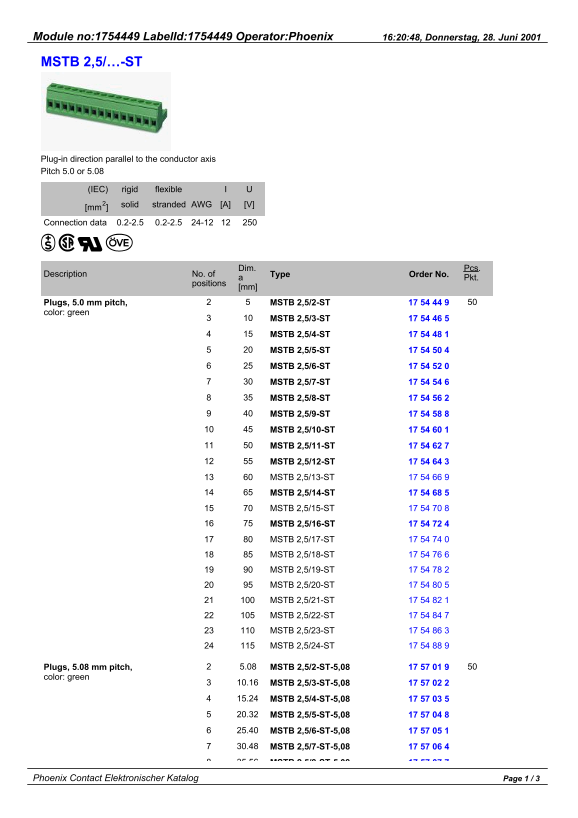

MSTB 2,5/…-ST
Plug-in direction parallel to the conductor axis Pitch 5.0 or 5.08
(IEC) rigid flexible
solid stranded AWG [A] [V]
[mm2]
Connection data 0.2-2.5 0.2-2.5 24-12
Dim. Pcs.
Description No. of Type Order No.
positions
Plugs, 5.0 mm pitch, MSTB 2,5/2-ST 17 54 44 9 color: green
MSTB 2,5/3-ST 17 54 46 5
MSTB 2,5/4-ST 17 54 48 1
MSTB 2,5/5-ST 17 54 50 4
MSTB 2,5/6-ST 17 54 52 0
MSTB 2,5/7-ST 17 54 54 6
MSTB 2,5/8-ST 17 54 56 2
MSTB 2,5/9-ST 17 54 58 8
MSTB 2,5/10-ST 17 54 60 1
MSTB 2,5/11-ST 17 54 62 7
MSTB 2,5/12-ST 17 54 64 3
MSTB 2,5/13-ST 17 54 66 9 MSTB 2,5/14-ST 17 54 68 5 MSTB 2,5/15-ST 17 54 70 8 MSTB 2,5/16-ST 17 54 72 4
MSTB 2,5/17-ST 17 54 74 0 MSTB 2,5/18-ST 17 54 76 6 MSTB 2,5/19-ST 17 54 78 2 MSTB 2,5/20-ST 17 54 80 5 MSTB 2,5/21-ST 17 54 82 1 MSTB 2,5/22-ST 17 54 84 7 MSTB 2,5/23-ST 17 54 86 3 MSTB 2,5/24-ST 17 54 88 9
Plugs, 5.08 mm pitch, 5.08 MSTB 2,5/2-ST-5,08 17 57 01 9
color: green
10.16 MSTB 2,5/3-ST-5,08 17 57 02 2
15.24 MSTB 2,5/4-ST-5,08 17 57 03 5
20.32 MSTB 2,5/5-ST-5,08 17 57 04 8
25.40 MSTB 2,5/6-ST-5,08 17 57 05 1
30.48 MSTB 2,5/7-ST-5,08 17 57 06 4
MSTB 5/8 ST
