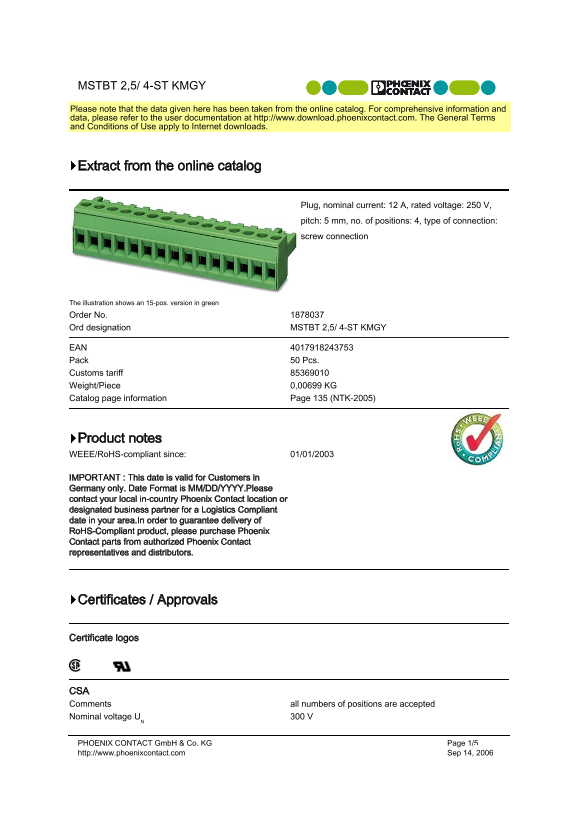

Page 1 Text Content
MSTBT 2,5/ 4-ST KMGY Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation at http://www.download.phoenixcontact.com. The General Terms and Conditions of Use apply to Internet downloads.
Extract from the online catalog
Plug, nominal current: 12 A, rated voltage: 250 V, pitch: 5 mm, no. of positions: 4, type of connection: screw connection
The illustration shows an 15-pos. version in green Order No. Ord designation MSTBT 2,5/ 4-ST KMGY
EAN Pack 50 Pcs. Customs tariff Weight/Piece 0,00699 KG Catalog page information Page 135 (NTK-2005)
Product notes WEEE/Ro HS-compliant since: 01/01/2003
IMPORTANT : This date is valid for Customers in Germany only. Date Format is MM/DD/YYYY.Please contact your local in-country Phoenix Contact location or designated business partner for a Logistics Compliant date in your area.In order to guarantee delivery of Ro HS-Compliant product, please purchase Phoenix Contact parts from authorized Phoenix Contact representatives and distributors.
Certificates / Approvals
Certificate logos
CSA Comments all numbers of positions are accepted Nominal voltage U 300 V
PHOENIX CONTACT Gmb H & Co. KG Page 1/5 http://www.phoenixcontact.com Sep 14, 2006
