Phoenix Contact - MSTBT 2,5 5-ST Data Handbook / Manual
Summary
Discover the MSTBT modular plug connector terminal block, engineered for robust and reliable industrial electrical connections up to 12 A at 250 V. This catalog guide provides comprehensive technical specifications, dimensional drawings, detailed connection data, and compatibility information for accessories like cable housings and marker cards. Ideal for electrical engineers and technicians building complex wiring systems, the product ensures secure connectivity while maintaining strict compliance with global standards (UL, RoHS).
Page 1 Text Content

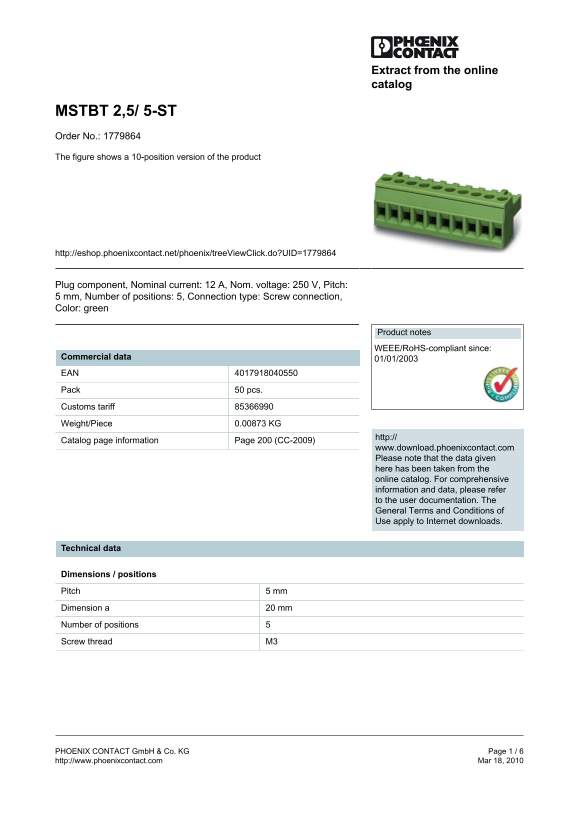

Extract from the online catalog
MSTBT 2,5/ 5-ST Order No.: 1779864 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1779864
Plug component, Nominal current: 12 A, Nom. voltage: 250 V, Pitch: 5 mm, Number of positions: 5, Connection type: Screw connection, Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.00873 KG
http://
Catalog page information Page 200 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 5 mm Dimension a 20 mm Number of positions Screw thread M3
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 6 http://www.phoenixcontact.com Mar 18, 2010
