Phoenix Contact - MSTBT 2,5 8-STE Data Manual
Summary
This component is a modular plug connector designed for reliable interconnection of terminal blocks in industrial electrical systems. Offering 8 positions with a standard 5mm pitch, it supports nominal currents up to 12A and features robust connection options for various wire types. The accompanying documentation provides comprehensive technical specifications, detailed wiring data (including cable cross-sections), compatible accessories (like housing and marking cards), and essential information for electrical engineers and technicians designing or maintaining professional control panel setups.
Page 1 Text Content
Extract from the online catalog

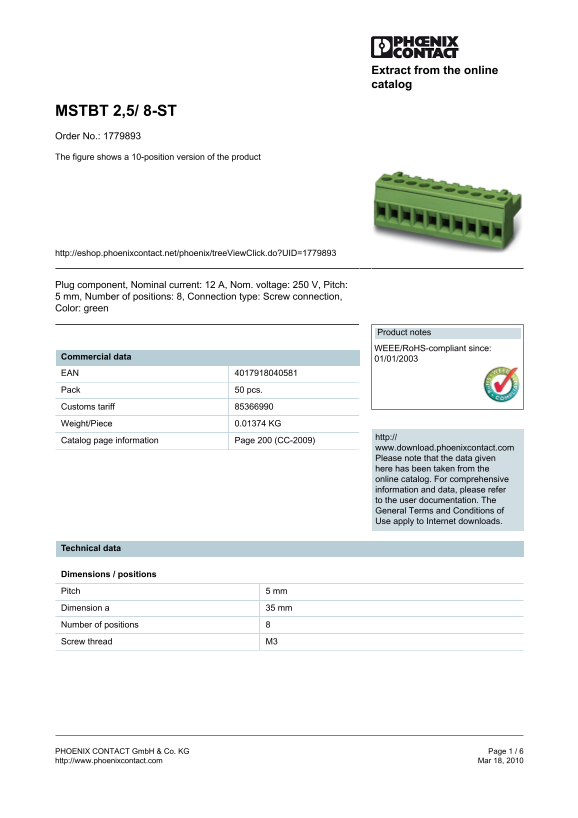

MSTBT 2,5/ 8-ST Order No.: 1779893 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1779893
Plug component, Nominal current: 12 A, Nom. voltage: 250 V, Pitch: 5 mm, Number of positions: 8, Connection type: Screw connection, Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.01374 KG
http://
Catalog page information Page 200 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 5 mm Dimension a 35 mm Number of positions Screw thread M3
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 6 http://www.phoenixcontact.com Mar 18, 2010
