Phoenix Contact MCVR 1.5 9-STE-3.5 General Data Manual
Summary
This high-quality professional plug component (MCVR 1,5/ 9-ST-3,5) provides a stable, multi-position connection point for control cabinets, rated for up to 8A at 160V. It features nine screw terminals with a standard 3.5 mm pitch. Ideal for electrical engineers and automation technicians building reliable panel systems, this component ensures secure connections across diverse conductor specifications (rigid and flexible wires). The accompanying manual offers comprehensive technical data, detailed wiring guidelines, dimensional drawings, and accessory information required for expert installation and maintenance.

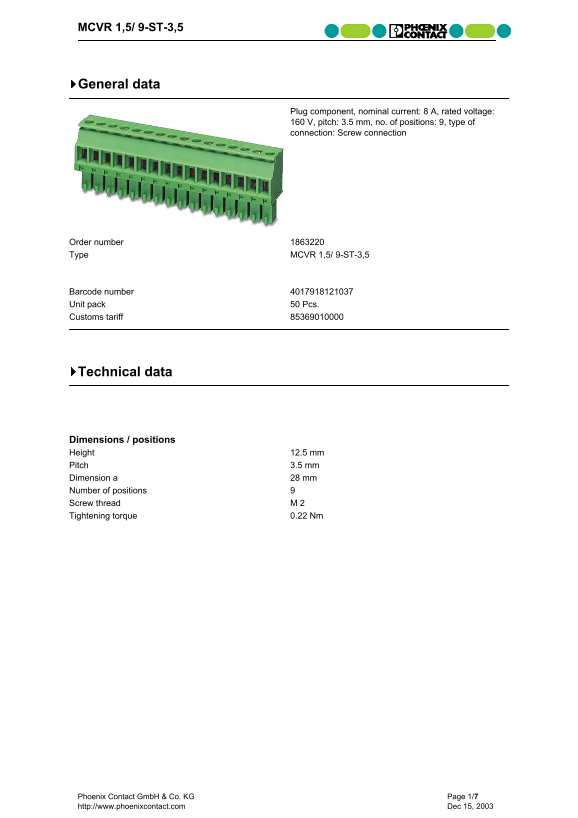

Page 1 Text Content
MCVR 1,5/ 9-ST-3,5
General data
Plug component, nominal current: 8 A, rated voltage: 160 V, pitch: 3.5 mm, no. of positions: 9, type of connection: Screw connection
Order number Type MCVR 1,5/ 9-ST-3,5
Barcode number Unit pack 50 Pcs. Customs tariff
Technical data
Dimensions / positions Height 12.5 mm Pitch 3.5 mm Dimension a 28 mm Number of positions 9 Screw thread M 2 Tightening torque 0.22 Nm
Phoenix Contact Gmb H & Co. KG Page 1/7 http://www.phoenixcontact.com Dec 15, 2003
Page Summary Contents For Phoenix Contact MCVR 1.5 9-STE-3.5 General Data Manual
Manual Details
| Brand | Phoenix |
|---|---|
| Pages | 7 |
| File Size | 91.01 KB |
| Published | May 29, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What conductor cross-section can be used for flexible wiring with a ferrule?
The maximum capacity, when using a ferrule with a plastic sleeve, is 1.5 mm².
What are the minimum specifications for solid conductors?
For rigid connections, the minimum conductor cross section is 0.14 mm².
Is this component compatible with different mounting types?
Yes, related product headers are available for Press-in or Soldering mounting options.
What is the required tightening torque during installation?
The specified tightening torque for the screw connection is 0.22 Nm.
