Phoenix Contact 1863204 MCVR 1.5 7-ST-3.5 Data Manual
Summary
This 7-position screw terminal block is an essential plug component rated for 8 A and 160 V, designed for robust industrial electrical connections with a standard 3.5 mm pitch. The comprehensive manual provides engineers and electricians with full technical specifications, including acceptable wire cross-sections (rigid/flexible), surge voltage ratings, dimensional drawings, and accessory information. Ideal for reliable wiring solutions in automation and panel assembly systems.
Page 1 Text Content

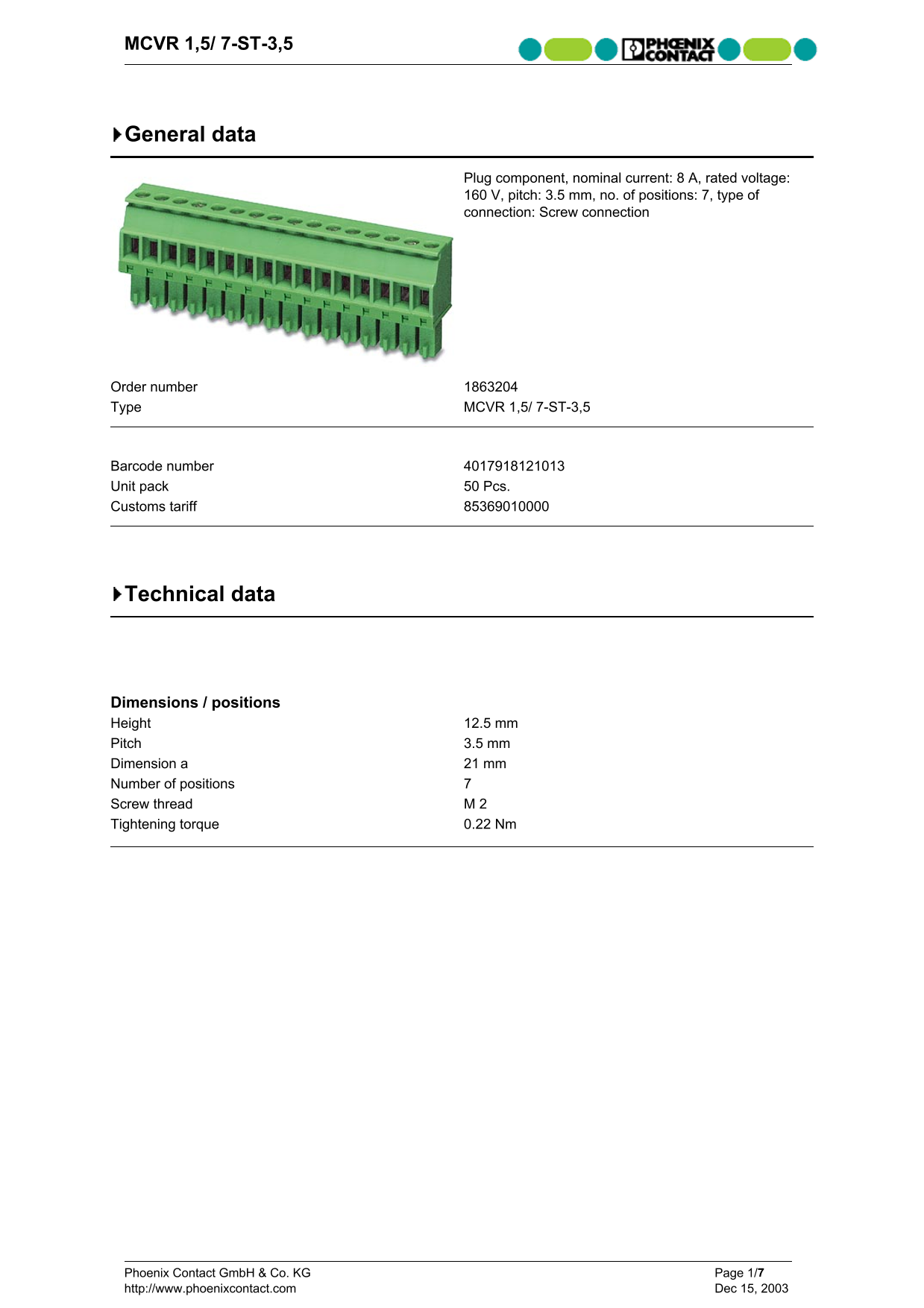

MCVR 1,5/ 7-ST-3,5
General data
Plug component, nominal current: 8 A, rated voltage: 160 V, pitch: 3.5 mm, no. of positions: 7, type of connection: Screw connection
Order number Type MCVR 1,5/ 7-ST-3,5
Barcode number Unit pack 50 Pcs. Customs tariff
Technical data
Dimensions / positions Height 12.5 mm Pitch 3.5 mm Dimension a 21 mm Number of positions 7 Screw thread M 2 Tightening torque 0.22 Nm
