Optimize your electrical installations with this professional series of screw connection terminal blocks. Engineered for industrial automation and control systems, these reliable plug components feature a 5.08 mm pitch and handle up to 12 A at 250 V. The accompanying manual provides comprehensive technical data, including wiring guidelines, compatibility for various conductor cross-sections, and details on associated accessories like cable housings and base strips. Designed for electrical engineers and system integrators, this resource ensures compliance and optimal connection efficiency in your demanding applications.

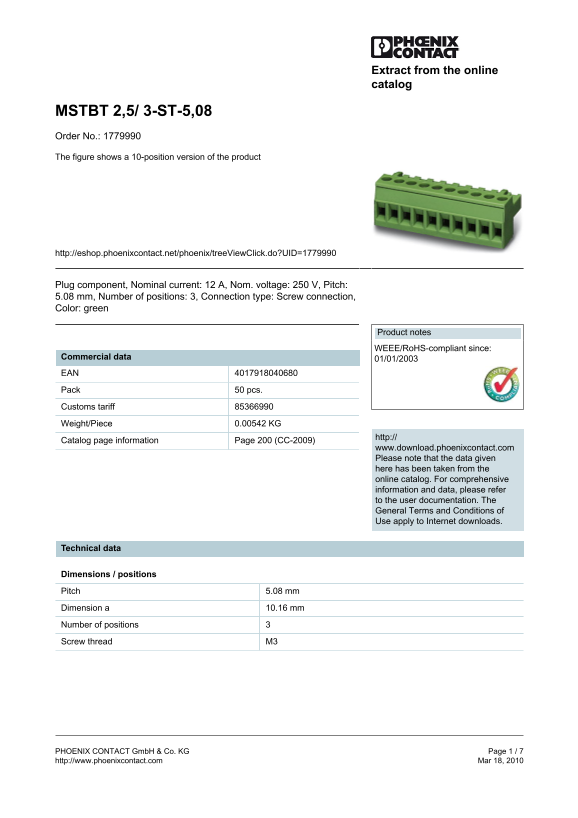

Page 1 Text Content
Extract from the online catalog
MSTBT 2,5/ 3-ST-5,08 Order No.: 1779990 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1779990
Plug component, Nominal current: 12 A, Nom. voltage: 250 V, Pitch: 5.08 mm, Number of positions: 3, Connection type: Screw connection, Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.00542 KG
http://
Catalog page information Page 200 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 5.08 mm Dimension a 10.16 mm Number of positions Screw thread M3
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 7 http://www.phoenixcontact.com Mar 18, 2010
Page Summary Contents For Phoenix Contact - MSTBT 2.5 3-ST-5.08 Data Sheet / Manual
Manual Details
| Brand | Phoenix |
|---|---|
| Pages | 7 |
| File Size | 143.82 KB |
| Published | May 31, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the nominal voltage and current for this terminal block?
The component has a Nominal voltage (U) of 250 V and a Nominal current (I) of 12 A.
What conductor cross sections are compatible with the connection point?
Solid conductors must range from a minimum of 0.2 mm² to a maximum of 2.5 mm².
Does the device meet international standards for compliance?
Yes, it is certified with standards including CB, CSA, CUL, GOST, and UL.
How do I ensure proper connection safety?
The recommended tightening torque falls between a minimum of 0.5 Nm and a maximum of 0.6 Nm.
