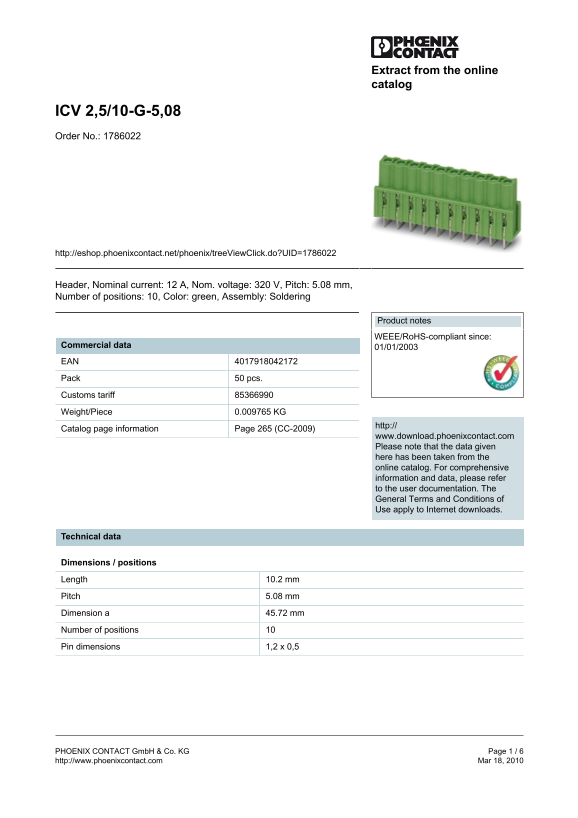

Extract from the online catalog
ICV 2,5/10-G-5,08 Order No.: 1786022
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1786022
Header, Nominal current: 12 A, Nom. voltage: 320 V, Pitch: 5.08 mm, Number of positions: 10, Color: green, Assembly: Soldering
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.009765 KG
http://
Catalog page information Page 265 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Length 10.2 mm Pitch 5.08 mm Dimension a 45.72 mm Number of positions Pin dimensions 1,2 x 0,5
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 6 http://www.phoenixcontact.com Mar 18, 2010
