Phoenix Contact GMSTBVA 2.5 8-G-7,62 Data Sheet
Summary
This highly rated terminal block header system, featuring 8 positions and a 7.62 mm pitch, provides robust electrical connectivity with ratings up to 12 A at 400 V. Designed for reliable performance in industrial switchgear and control systems, this components is ideal for soldering assembly. The accompanying documentation offers comprehensive technical details, including dimensioned drawings, drilling plans, and compatibility guides. It is essential reading for electrical engineers, automation integrators, and hardware specialists seeking to select or upgrade high-quality, certified connection modules.
Page 1 Text Content
Extract from the online catalog

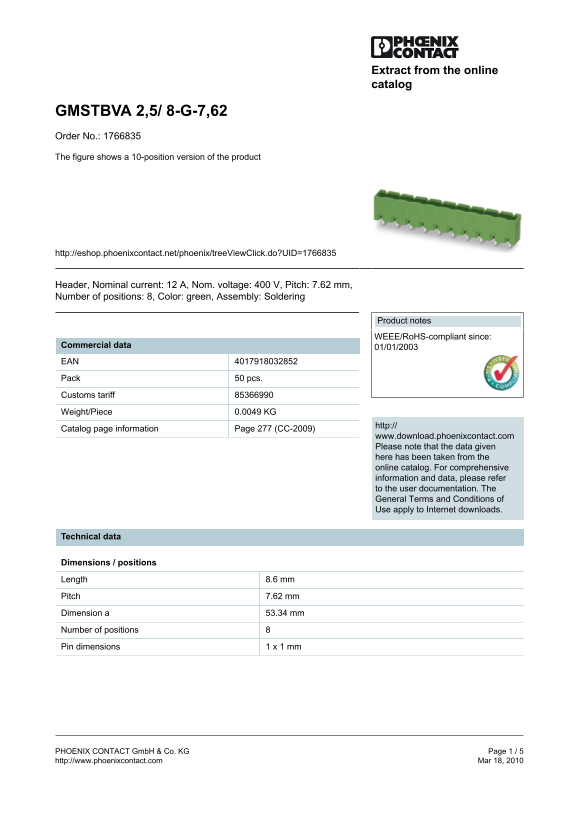

GMSTBVA 2,5/ 8-G-7,62 Order No.: 1766835 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1766835
Header, Nominal current: 12 A, Nom. voltage: 400 V, Pitch: 7.62 mm, Number of positions: 8, Color: green, Assembly: Soldering
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.0049 KG
http://
Catalog page information Page 277 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Length 8.6 mm Pitch 7.62 mm Dimension a 53.34 mm Number of positions Pin dimensions 1 x 1 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 5 http://www.phoenixcontact.com Mar 18, 2010
