Phoenix Contact GMSTBVA 2,5 3-G-7,62 Data Sheet / Manual
Summary
Designed for robust and reliable electrical connectivity, these standardized terminal block components feature various headers and plugs engineered for complex industrial wiring systems. This resource provides comprehensive technical documentation, including detailed dimensions, drilling patterns, full electrical specifications (up to 500V/12A), necessary accessories, and adherence certifications. It is essential reading for electrical engineers, technicians, and automation specialists requiring precise connection components for high-quality industrial assembly.
Page 1 Text Content
Extract from the online catalog

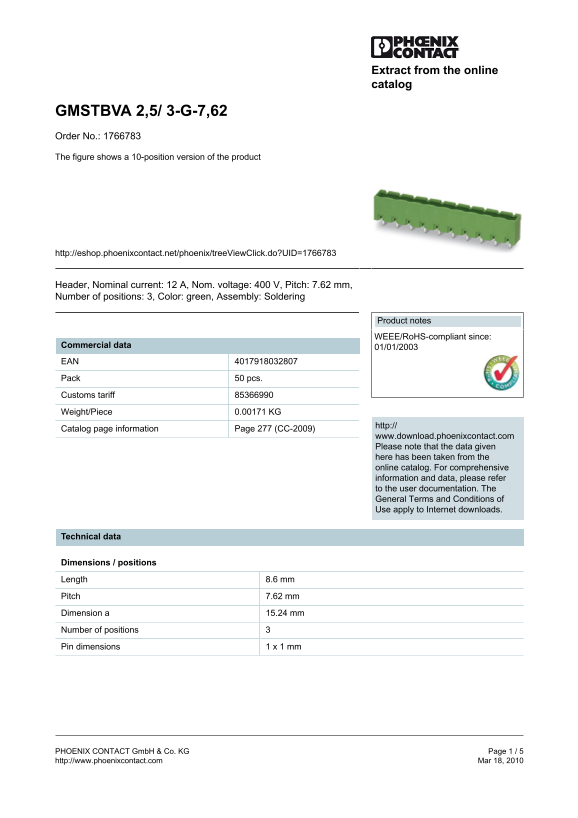

GMSTBVA 2,5/ 3-G-7,62 Order No.: 1766783 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1766783
Header, Nominal current: 12 A, Nom. voltage: 400 V, Pitch: 7.62 mm, Number of positions: 3, Color: green, Assembly: Soldering
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.00171 KG
http://
Catalog page information Page 277 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Length 8.6 mm Pitch 7.62 mm Dimension a 15.24 mm Number of positions Pin dimensions 1 x 1 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 5 http://www.phoenixcontact.com Mar 18, 2010
