Phoenix Contact PCV 4 5-G-7,62 Data Handbook
Summary
This high-performance 5-position header terminal block (PCV 4/ 5-G-7,62) provides a reliable soldering connection solution for industrial electrical systems. The product is rated up to 20A at 400V and features a standard 7.62mm pitch. Included technical data provide engineers with comprehensive details such as dimensional drawings, mounting plans, and detailed electrical ratings (including surge voltage), ensuring accurate integration into demanding power distribution applications. Ideal for automation professionals and panel builders needing robust, compliant components.
Page 1 Text Content
Extract from the online catalog

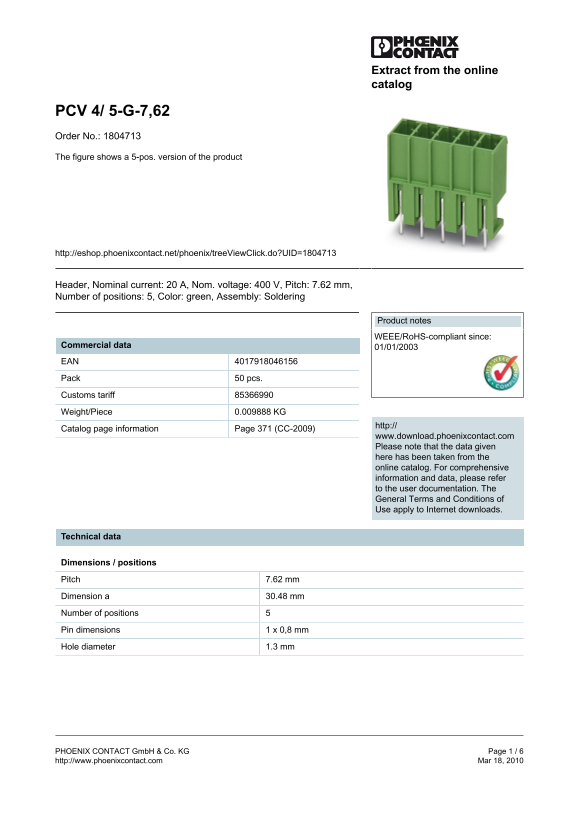

PCV 4/ 5-G-7,62 Order No.: 1804713 The figure shows a 5-pos. version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1804713
Header, Nominal current: 20 A, Nom. voltage: 400 V, Pitch: 7.62 mm, Number of positions: 5, Color: green, Assembly: Soldering
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.009888 KG
http://
Catalog page information Page 371 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 7.62 mm Dimension a 30.48 mm Number of positions Pin dimensions 1 x 0,8 mm Hole diameter 1.3 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 6 http://www.phoenixcontact.com Mar 18, 2010
