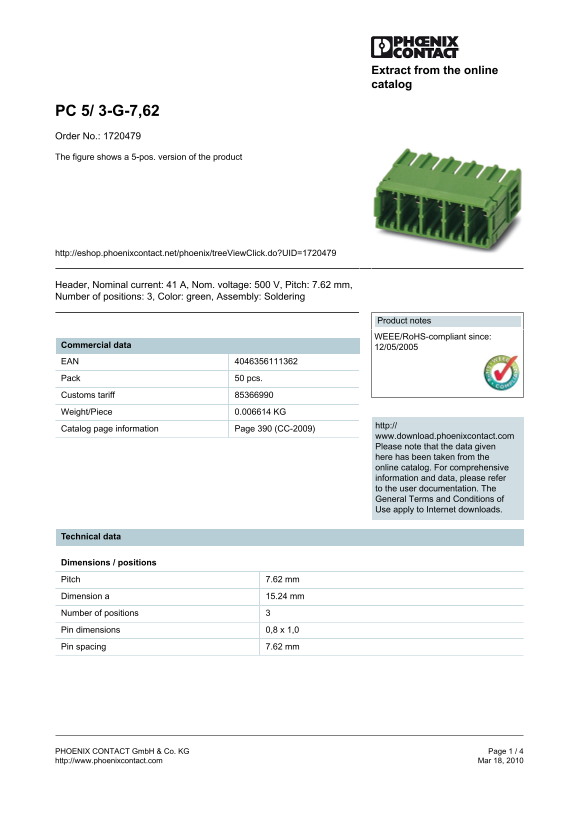

Extract from the online catalog
PC 5/ 3-G-7,62 Order No.: 1720479 The figure shows a 5-pos. version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1720479
Header, Nominal current: 41 A, Nom. voltage: 500 V, Pitch: 7.62 mm, Number of positions: 3, Color: green, Assembly: Soldering
Product notes WEEE/Ro HS-compliant since:
Commercial data 12/05/2005 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.006614 KG
http://
Catalog page information Page 390 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 7.62 mm Dimension a 15.24 mm Number of positions Pin dimensions 0,8 x 1,0 Pin spacing 7.62 mm
