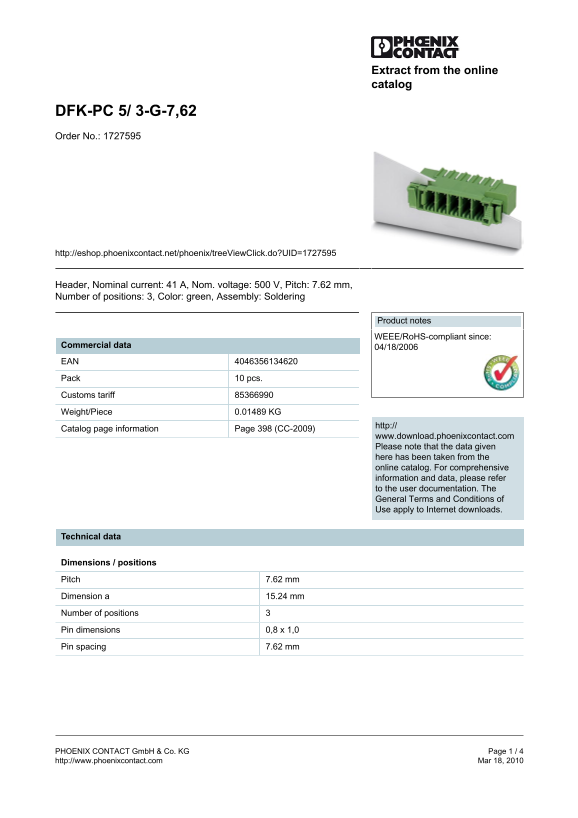

Page 1 Text Content
Extract from the online catalog
DFK-PC 5/ 3-G-7,62 Order No.: 1727595
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1727595
Header, Nominal current: 41 A, Nom. voltage: 500 V, Pitch: 7.62 mm, Number of positions: 3, Color: green, Assembly: Soldering
Product notes WEEE/Ro HS-compliant since:
Commercial data 04/18/2006 EAN Pack 10 pcs. Customs tariff Weight/Piece 0.01489 KG
http://
Catalog page information Page 398 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 7.62 mm Dimension a 15.24 mm Number of positions Pin dimensions 0,8 x 1,0 Pin spacing 7.62 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 4 http://www.phoenixcontact.com Mar 18, 2010
Page Summary Contents For Phoenix Contact - DFK-PC 5 3-G-7,62 Data Sheet / Manual
Manual Details
| Brand | Phoenix |
|---|---|
| Pages | 4 |
| File Size | 113.93 KB |
| Published | June 02, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the nominal voltage and current capacity of this block?
It features a Nominal voltage of 500 V and supports a maximum load current of 41 A.
How must this header be installed?
The assembly is for soldering, requiring holes with a diameter of 1.3 mm.
Which standards does the connection follow?
It connects according to the standard EN-VDE and has PA insulating material compatible with UL 94 V0.
Is the product environmentally compliant?
Yes, it is WEEE/RoHS-compliant, and its materials meet safety requirements specified in the catalog.
