Phoenix Contact DFK-PC 5 2- G-7,62 Order No. 1727582 User Manual and Instruction Booklet
Summary
This robust soldering header is a high-performance electronic component designed for reliable electrical connections, rated for up to 41A at 500V. The accompanying documentation serves as an essential technical resource for engineers and industrial designers. It provides complete dimensional drawings, specialized drilling plans, and mounting cutouts necessary for seamless integration into various systems. Ideal for system integrators who require durable, compliance-approved components for complex assembly and wiring projects.

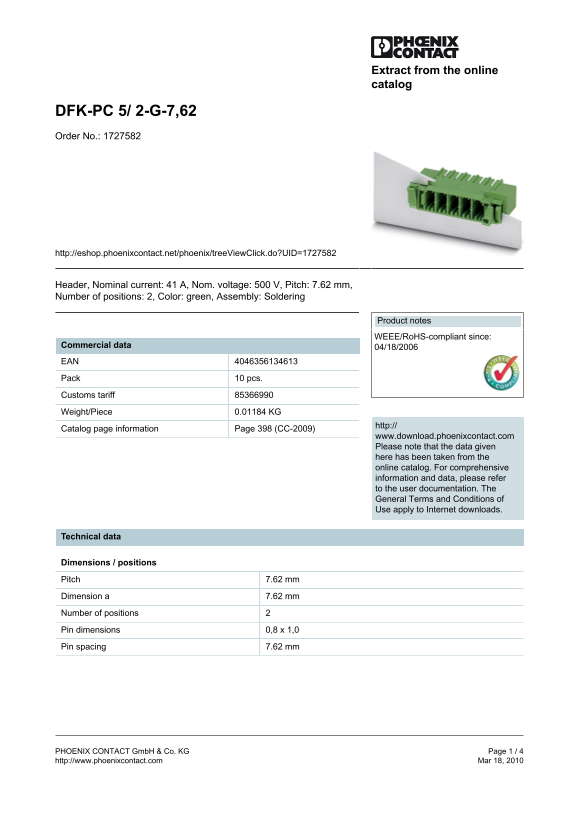

Page 1 Text Content
Extract from the online catalog
DFK-PC 5/ 2-G-7,62 Order No.: 1727582
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1727582
Header, Nominal current: 41 A, Nom. voltage: 500 V, Pitch: 7.62 mm, Number of positions: 2, Color: green, Assembly: Soldering
Product notes WEEE/Ro HS-compliant since:
Commercial data 04/18/2006 EAN Pack 10 pcs. Customs tariff Weight/Piece 0.01184 KG
http://
Catalog page information Page 398 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 7.62 mm Dimension a 7.62 mm Number of positions Pin dimensions 0,8 x 1,0 Pin spacing 7.62 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 4 http://www.phoenixcontact.com Mar 18, 2010
Page Summary Contents For Phoenix Contact DFK-PC 5 2- G-7,62 Order No. 1727582 User Manual and Instruction Booklet
Manual Details
| Brand | Phoenix |
|---|---|
| Pages | 4 |
| File Size | 113.64 KB |
| Published | June 15, 2026 |
