Phoenix Contact PC 4 10-G-7,62 Order No. 1804878 Product Data Handbook & Manual
Summary
This detailed manual provides comprehensive technical specifications for the PC 4/10-G-7,62 Header terminal block. Designed for robust industrial applications, this component features a nominal current of 20 A and a standard 7.62 mm pitch, accommodating up to 10 positions. The documentation is essential for electrical engineers and automation professionals, covering everything from precise dimensional drawings and derating curves to compatible accessories and soldering assembly guidelines, ensuring accurate design and integration into your system architecture.

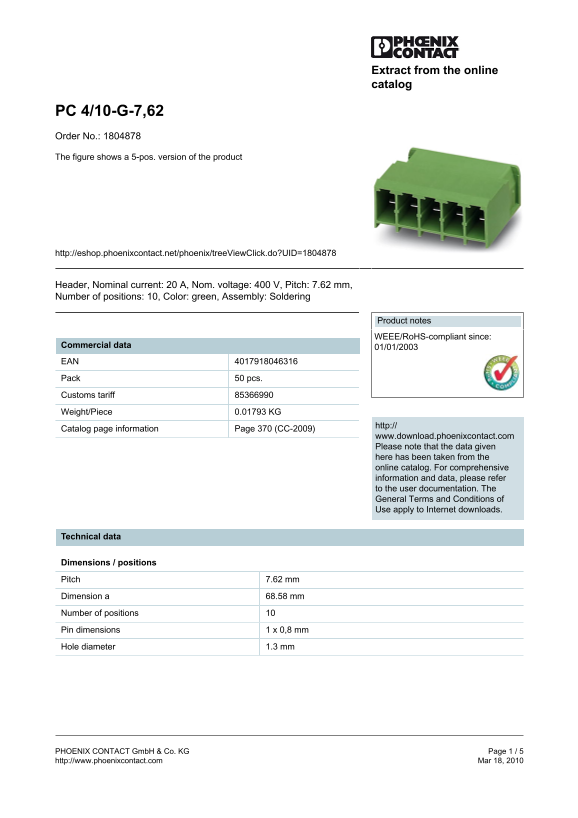

Page 1 Text Content
Extract from the online catalog
PC 4/10-G-7,62 Order No.: 1804878 The figure shows a 5-pos. version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1804878
Header, Nominal current: 20 A, Nom. voltage: 400 V, Pitch: 7.62 mm, Number of positions: 10, Color: green, Assembly: Soldering
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.01793 KG
http://
Catalog page information Page 370 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 7.62 mm Dimension a 68.58 mm Number of positions Pin dimensions 1 x 0,8 mm Hole diameter 1.3 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 5 http://www.phoenixcontact.com Mar 18, 2010
Page Summary Contents For Phoenix Contact PC 4 10-G-7,62 Order No. 1804878 Product Data Handbook & Manual
Manual Details
| Brand | Phoenix |
|---|---|
| Pages | 5 |
| File Size | 159.02 KB |
| Published | May 29, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the rated nominal voltage for this header?
The rated voltage (III/2) and (II/2) is 630 V.
How many terminal positions are available on the PC 4/10-G-7,62?
It has a total of 10 positions.
What material is used for insulation?
The insulating material is PA.
Are there specific mounting accessories recommended?
Mounting flanges (1827570) are available to snap onto the left and right sides for screw connection.
