Phoenix Contact PC 4 8-G-7,62 Data Sheet
Summary
This 8-position solderable terminal header component is engineered for reliable electrical connections in demanding industrial applications. The accompanying manual provides comprehensive technical specifications, covering rated surge voltages and currents up to 400V/20A. It guides professionals through installation best practices and accessories—including mounting flanges and marker cards—ensuring precise integration and optimal performance when building circuit control systems.

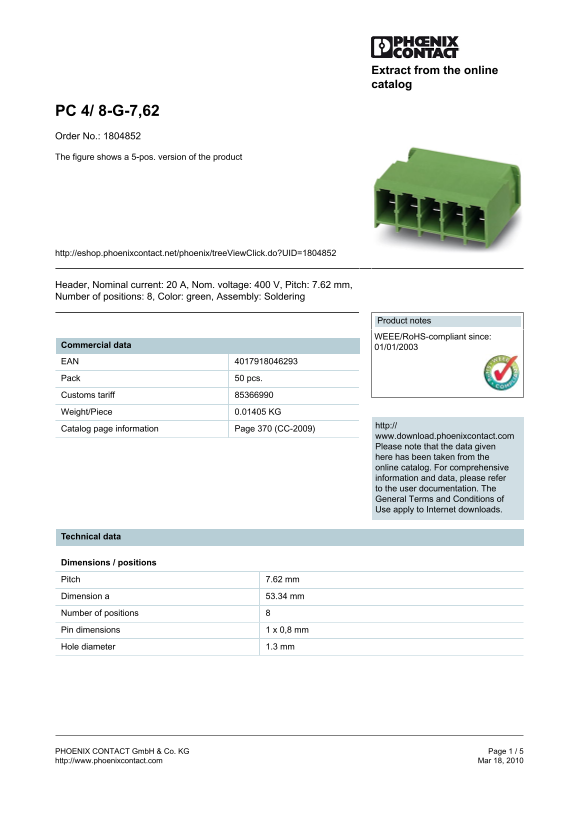

Page 1 Text Content
Extract from the online catalog
PC 4/ 8-G-7,62 Order No.: 1804852 The figure shows a 5-pos. version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1804852
Header, Nominal current: 20 A, Nom. voltage: 400 V, Pitch: 7.62 mm, Number of positions: 8, Color: green, Assembly: Soldering
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.01405 KG
http://
Catalog page information Page 370 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 7.62 mm Dimension a 53.34 mm Number of positions Pin dimensions 1 x 0,8 mm Hole diameter 1.3 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 5 http://www.phoenixcontact.com Mar 18, 2010
Page Summary Contents For Phoenix Contact PC 4 8-G-7,62 Data Sheet
Manual Details
| Brand | Phoenix |
|---|---|
| Pages | 5 |
| File Size | 159.02 KB |
| Published | June 15, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the nominal voltage and current for this module?
The general specifications list a nominal voltage (U) of 400 V and a nominal current (I) of 20 A.
Do I need special accessories to use it?
Yes, accessories include mounting flanges, marker pens, and specialized self-adhesive marker cards for labeling.
What is the maximum allowable load current?
The maximum load current is specified as 20 A.
How do I verify its compliance?
It holds multiple certifications including BV, CSA, CUL, DNV, GL, GOST, LR, RS, and UL CSA.
