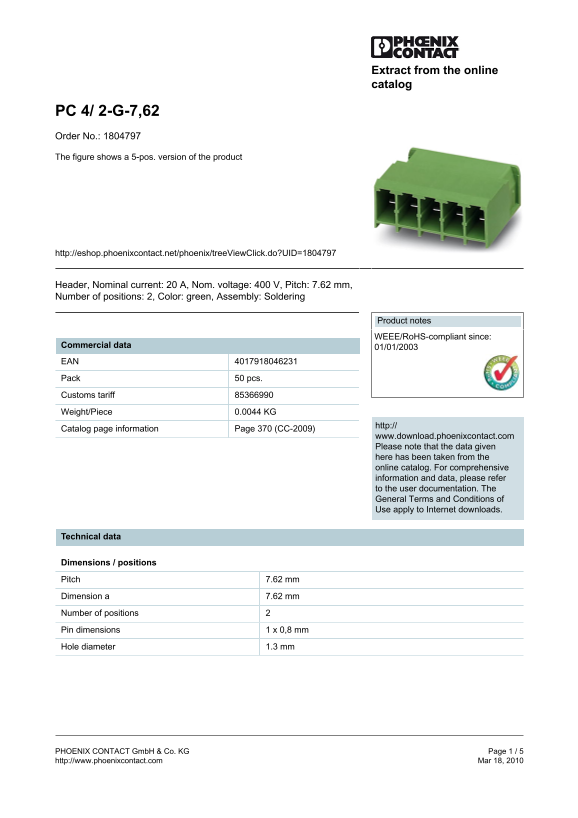

Extract from the online catalog
PC 4/ 2-G-7,62 Order No.: 1804797 The figure shows a 5-pos. version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1804797
Header, Nominal current: 20 A, Nom. voltage: 400 V, Pitch: 7.62 mm, Number of positions: 2, Color: green, Assembly: Soldering
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.0044 KG
http://
Catalog page information Page 370 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 7.62 mm Dimension a 7.62 mm Number of positions Pin dimensions 1 x 0,8 mm Hole diameter 1.3 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 5 http://www.phoenixcontact.com Mar 18, 2010
