Phoenix Contact IC 2.5 8-SMT-5.08 Data Sheet
Summary
This versatile modular plug component provides high-reliability connectivity for industrial automation and control systems. With 8 positions and a standard 5.08 mm pitch, it supports up to 12A at 250V, making it suitable for demanding electrical integration tasks. The accompanying technical documentation is essential for engineers, detailing comprehensive usage guidelines, conductor cross-section limitations (for stranded and solid wires), mounting accessories, and required compliance standards such as UL and VDE. Use this resource for designing reliable, code-compliant circuit connections in professional industrial environments.
Page 1 Text Content
Extract from the online catalog

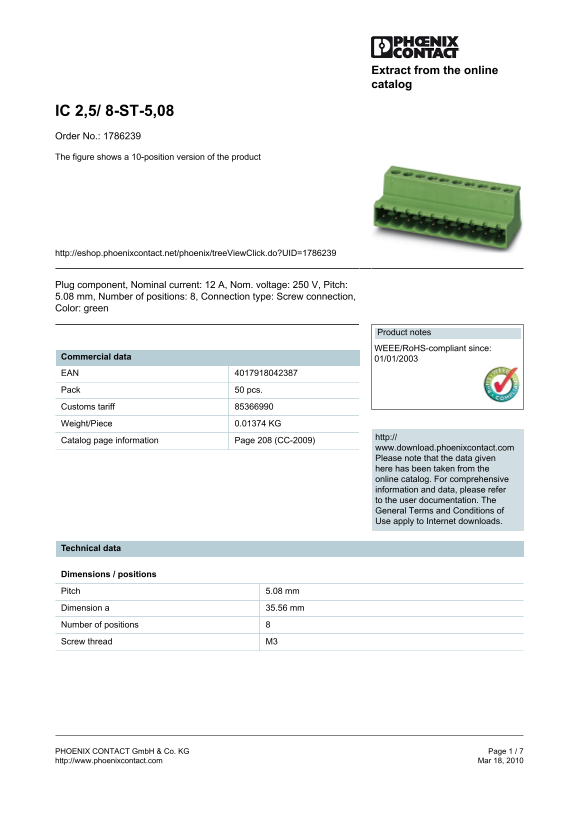

IC 2,5/ 8-ST-5,08 Order No.: 1786239 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1786239
Plug component, Nominal current: 12 A, Nom. voltage: 250 V, Pitch: 5.08 mm, Number of positions: 8, Connection type: Screw connection, Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.01374 KG
http://
Catalog page information Page 208 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 5.08 mm Dimension a 35.56 mm Number of positions Screw thread M3
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 7 http://www.phoenixcontact.com Mar 18, 2010
