Phoenix Contact - MKDSN 2.5 3-5.08 Data Manual/Specification Sheet
Summary
This reliable PC terminal block is an industrial component designed for electrical connections, featuring a rated capacity of 16 A at 250 V using a standardized 5.08 mm pitch and secure screw connection mechanism. It is ideal for system integrators, controls engineers, and technicians building robust control panels and circuit boards. The accompanying technical documentation provides comprehensive data, including full electrical specifications, dimensional drawings, compatibility information for various conductor cross-sections (solid/stranded), compliance certifications (UL, VDE), and essential accessory guides to ensure accurate installation and optimal performance.
Page 1 Text Content
Extract from the online catalog

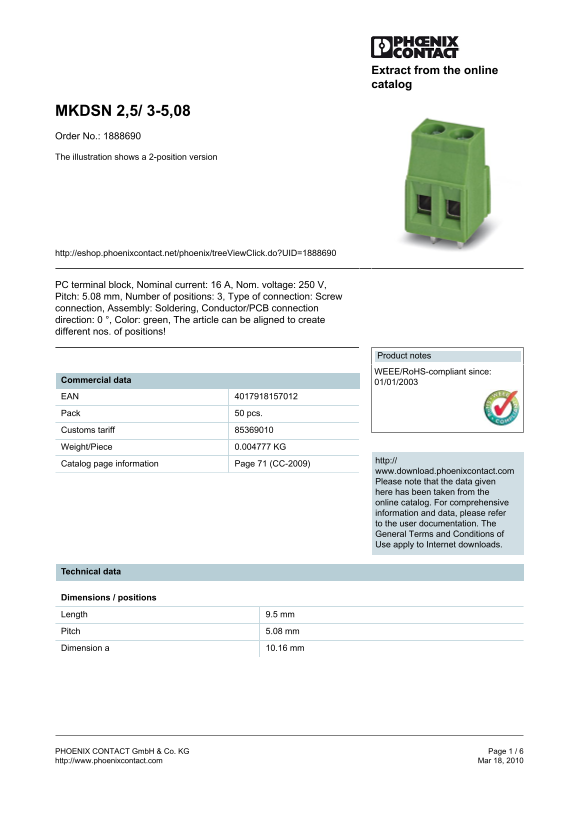

MKDSN 2,5/ 3-5,08 Order No.: 1888690 The illustration shows a 2-position version
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1888690
PC terminal block, Nominal current: 16 A, Nom. voltage: 250 V, Pitch: 5.08 mm, Number of positions: 3, Type of connection: Screw connection, Assembly: Soldering, Conductor/PCB connection direction: 0 °, Color: green, The article can be aligned to create different nos. of positions!
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.004777 KG
http://
Catalog page information Page 71 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Length 9.5 mm Pitch 5.08 mm Dimension a 10.16 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 6 http://www.phoenixcontact.com Mar 18, 2010
