This technical guide details the IC 2,5/10-ST-5,08 plug component, engineered for reliable electrical circuit connections up to 12A at 250V across 10 positions with a standard 5.08mm pitch. The documentation provides comprehensive data on connection requirements, dimensional specifications, and compliance certifications (UL, CSA). It is an essential resource for industrial engineers, automation specialists, and technicians involved in designing and upgrading panel-mounted electrical control systems.
Page 1 Text Content
Extract from the online catalog

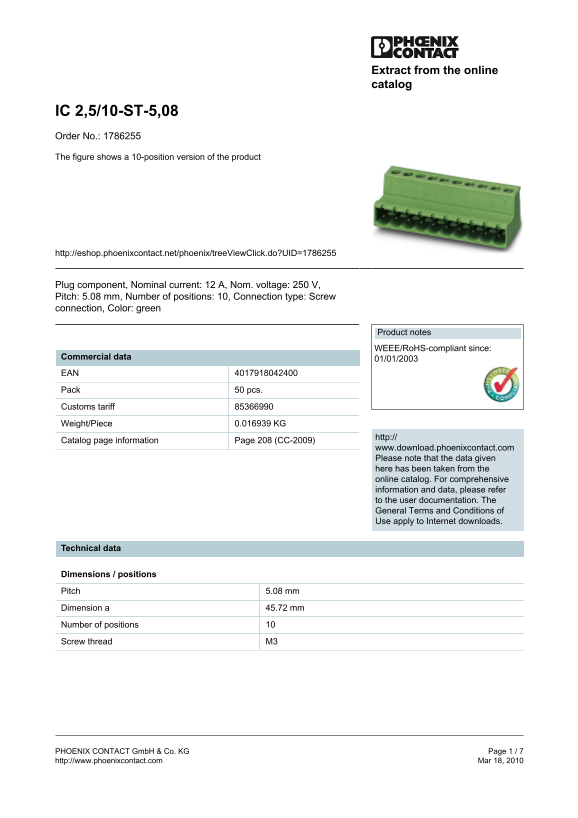

IC 2,5/10-ST-5,08 Order No.: 1786255 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1786255
Plug component, Nominal current: 12 A, Nom. voltage: 250 V, Pitch: 5.08 mm, Number of positions: 10, Connection type: Screw connection, Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.016939 KG
http://
Catalog page information Page 208 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 5.08 mm Dimension a 45.72 mm Number of positions Screw thread M3
