This plug component is essential for robust, high-current electrical connectivity in industrial automation systems mounted on DIN rails. Engineered for reliable performance up to 12A/250V, it ensures secure connections with multiple standardized interfaces. The accompanying technical documentation provides comprehensive wiring specifications, certification details (UL/CSA), and setup guidelines, making it the ideal resource for electrical engineers and technicians designing or maintaining professional industrial control panels.

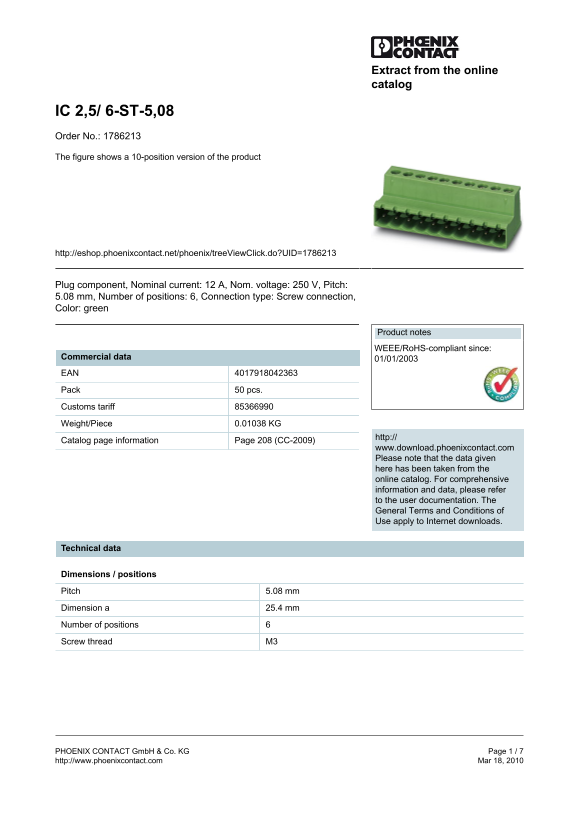

Page 1 Text Content
Extract from the online catalog
IC 2,5/ 6-ST-5,08 Order No.: 1786213 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1786213
Plug component, Nominal current: 12 A, Nom. voltage: 250 V, Pitch: 5.08 mm, Number of positions: 6, Connection type: Screw connection, Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.01038 KG
http://
Catalog page information Page 208 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 5.08 mm Dimension a 25.4 mm Number of positions Screw thread M3
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 7 http://www.phoenixcontact.com Mar 18, 2010
Page Summary Contents For Phoenix Contact - IC 2.5 6-ST-5.08 Data Handbook/Specifications Manual
Manual Details
| Brand | Phoenix |
|---|---|
| Pages | 7 |
| File Size | 141.80 KB |
| Published | June 05, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the standard pitch of this component?
The nominal pitch is 5.08 mm.
What are the acceptable conductor cross-section limits?
Solid conductors must range from a minimum of 0.2 mm² to a maximum of 2.5 mm².
What is the recommended tightening torque for assembly?
The tightening torque should be maintained between 0.5 Nm and 0.6 Nm.
Which certifications does this component hold?
It is certified with CB, CSA, CUL, GOST, UL, and VDE-PZI approvals.
