This technical document provides comprehensive details for the MSTBO 2,5/ 4-G1L KMGY Combinicon header, an essential component designed for soldering directly onto printed circuit boards (PCBs). The guide covers detailed electrical specifications, UL/CSA compliance data, and a full range of necessary accessories, including mounting flanges, keying caps, and labeling solutions. It is ideal for engineers and automation professionals designing durable, compliant electronic circuits who require reliable connector documentation and optimal installation guidance.

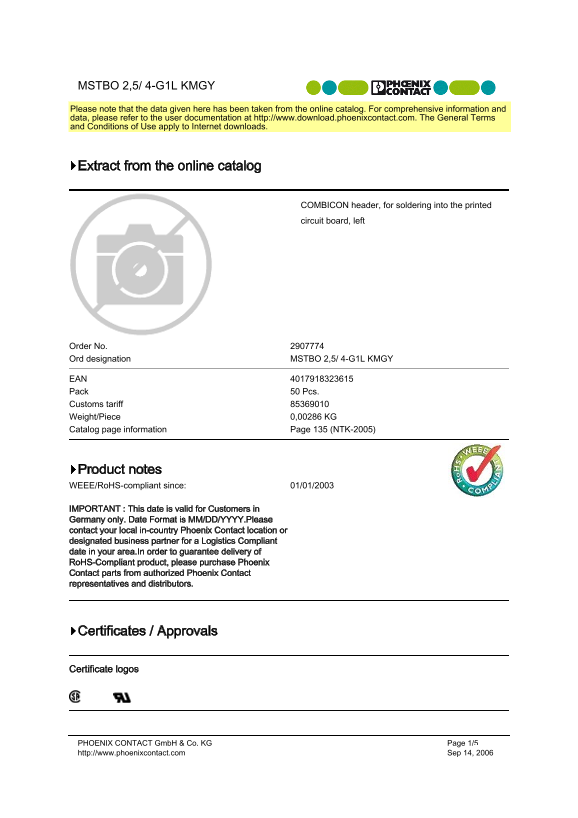

Page 1 Text Content
MSTBO 2,5/ 4-G1L KMGY Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation at http://www.download.phoenixcontact.com. The General Terms and Conditions of Use apply to Internet downloads.
Extract from the online catalog
COMBICON header, for soldering into the printed circuit board, left
Order No. Ord designation MSTBO 2,5/ 4-G1L KMGY
EAN Pack 50 Pcs. Customs tariff Weight/Piece 0,00286 KG Catalog page information Page 135 (NTK-2005)
Product notes WEEE/Ro HS-compliant since: 01/01/2003
IMPORTANT : This date is valid for Customers in Germany only. Date Format is MM/DD/YYYY.Please contact your local in-country Phoenix Contact location or designated business partner for a Logistics Compliant date in your area.In order to guarantee delivery of Ro HS-Compliant product, please purchase Phoenix Contact parts from authorized Phoenix Contact representatives and distributors.
Certificates / Approvals
Certificate logos
PHOENIX CONTACT Gmb H & Co. KG Page 1/5 http://www.phoenixcontact.com Sep 14, 2006
