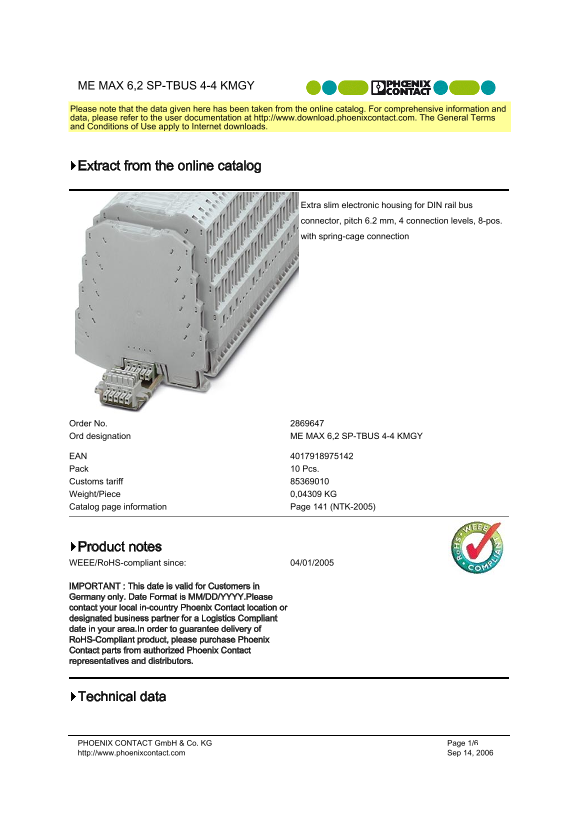

ME MAX 6,2 SP-TBUS 4-4 KMGY Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation at http://www.download.phoenixcontact.com. The General Terms and Conditions of Use apply to Internet downloads.
Extract from the online catalog
Extra slim electronic housing for DIN rail bus connector, pitch 6.2 mm, 4 connection levels, 8-pos. with spring-cage connection
Order No. Ord designation ME MAX 6,2 SP-TBUS 4-4 KMGY
EAN Pack 10 Pcs. Customs tariff Weight/Piece 0,04309 KG Catalog page information Page 141 (NTK-2005)
Product notes WEEE/Ro HS-compliant since: 04/01/2005
IMPORTANT : This date is valid for Customers in Germany only. Date Format is MM/DD/YYYY.Please contact your local in-country Phoenix Contact location or designated business partner for a Logistics Compliant date in your area.In order to guarantee delivery of Ro HS-Compliant product, please purchase Phoenix Contact parts from authorized Phoenix Contact representatives and distributors.
Technical data
PHOENIX CONTACT Gmb H & Co. KG Page 1/6 http://www.phoenixcontact.com Sep 14, 2006
