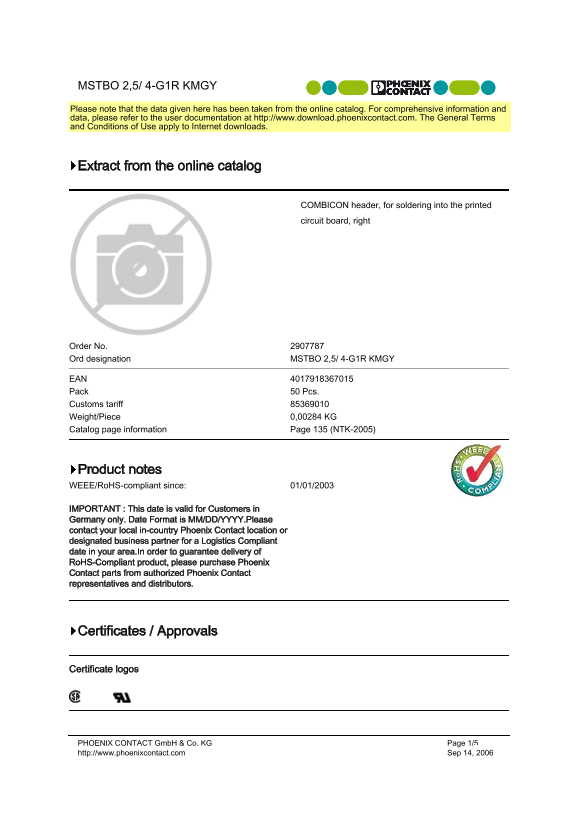

Page 1 Text Content
MSTBO 2,5/ 4-G1R KMGY Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation at http://www.download.phoenixcontact.com. The General Terms and Conditions of Use apply to Internet downloads.
Extract from the online catalog
COMBICON header, for soldering into the printed circuit board, right
Order No. Ord designation MSTBO 2,5/ 4-G1R KMGY
EAN Pack 50 Pcs. Customs tariff Weight/Piece 0,00284 KG Catalog page information Page 135 (NTK-2005)
Product notes WEEE/Ro HS-compliant since: 01/01/2003
IMPORTANT : This date is valid for Customers in Germany only. Date Format is MM/DD/YYYY.Please contact your local in-country Phoenix Contact location or designated business partner for a Logistics Compliant date in your area.In order to guarantee delivery of Ro HS-Compliant product, please purchase Phoenix Contact parts from authorized Phoenix Contact representatives and distributors.
Certificates / Approvals
Certificate logos
PHOENIX CONTACT Gmb H & Co. KG Page 1/5 http://www.phoenixcontact.com Sep 14, 2006
Page Summary Contents For PHOENIX CONTACT MSTBO 2,5 4- G1R KMGY Owner's Manual
Manual Details
| Brand | Phoenix |
|---|---|
| Pages | 5 |
| File Size | 113.81 KB |
| Published | June 05, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the nominal voltage and current for this header?
The CSA rating indicates a nominal voltage of U 300 V and a nominal current of 10 A.
Where can I find comprehensive specifications and detailed data?
Please refer to the user documentation available at http://www.download.phoenixcontact.com.
Are there connecting accessories for this header block?
Yes, items like MSTB-BF (mounting flange) or Plug/Adapter 1734401 are available.
What is the RoHS compliance status and date?
The component is WEEE/RoHS-compliant since January 2003 (for customers in Germany).
