This versatile 2-position terminal block from Phoenix Contact, rated for 16A at 250V with a 5.08mm pitch, provides robust electrical connectivity adaptable to both screw and soldering connections. It supports conductor cross-sections up to 2.5 mm², making it ideal for various industrial applications. The accompanying documentation offers comprehensive technical data, including detailed wiring standards (EN-VDE), material specifications, compatible accessories, and crucial certification details (UL/GOST). This resource is essential for electrical engineers and technicians needing precise installation parameters and compliance information for high-quality circuitry builds.

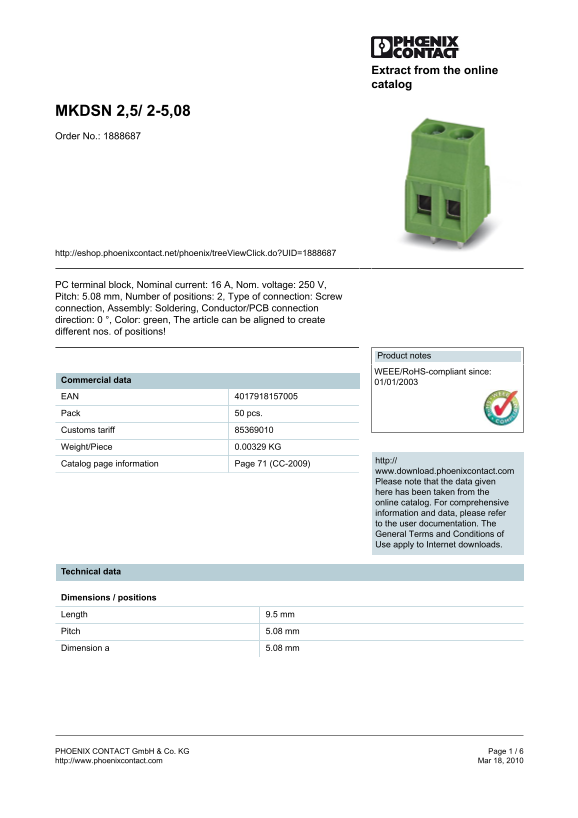

Page 1 Text Content
Extract from the online catalog
MKDSN 2,5/ 2-5,08 Order No.: 1888687
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1888687
PC terminal block, Nominal current: 16 A, Nom. voltage: 250 V, Pitch: 5.08 mm, Number of positions: 2, Type of connection: Screw connection, Assembly: Soldering, Conductor/PCB connection direction: 0 °, Color: green, The article can be aligned to create different nos. of positions!
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.00329 KG
http://
Catalog page information Page 71 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Length 9.5 mm Pitch 5.08 mm Dimension a 5.08 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 6 http://www.phoenixcontact.com Mar 18, 2010
Page Summary Contents For Phoenix Contact - MKDSN 2,5 2-5,08 Data Manual
Manual Details
| Brand | Phoenix |
|---|---|
| Pages | 6 |
| File Size | 157.25 KB |
| Published | June 01, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the nominal electrical ratings of this terminal block?
The nominal current is 16 A, and the nominal voltage is 250 V.
Are there size limits for connecting conductors?
For solid cross sections, conductors must be between a minimum of 0.2 mm² and a maximum of 2.5 mm².
Can I extend or change the number of positions on this device?
Yes, the article can be aligned to create different numbers of positions.
What is the listed rating for transient voltage protection?
The rated surge voltage (III/3) provided is 4 kV.
