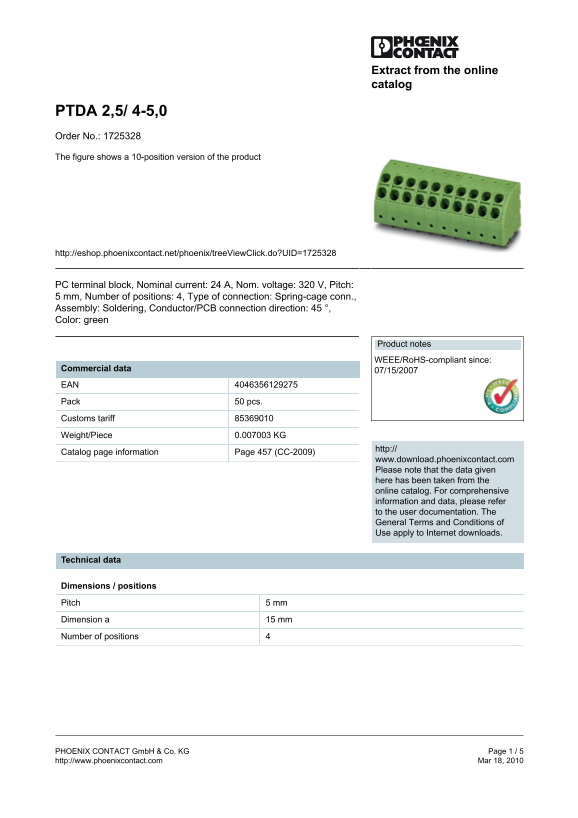

PTDA 2,5/ 4-5,0 Order No.: 1725328 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1725328
PC terminal block, Nominal current: 24 A, Nom. voltage: 320 V, Pitch: 5 mm, Number of positions: 4, Type of connection: Spring-cage conn., Assembly: Soldering, Conductor/PCB connection direction: 45 °, Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 07/15/2007 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.007003 KG
http://
Catalog page information Page 457 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 5 mm Dimension a 15 mm Number of positions
