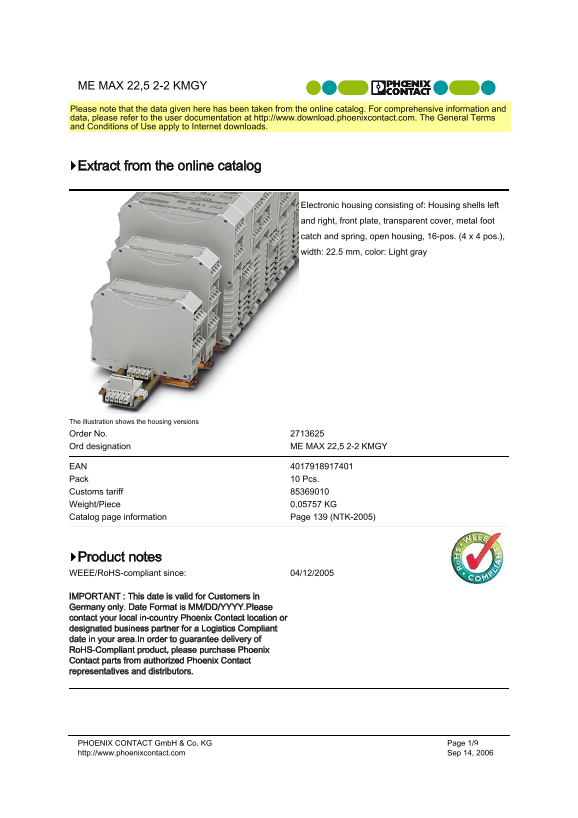

ME MAX 22,5 2-2 KMGY Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation at http://www.download.phoenixcontact.com. The General Terms and Conditions of Use apply to Internet downloads.
Extract from the online catalog
Electronic housing consisting of: Housing shells left and right, front plate, transparent cover, metal foot catch and spring, open housing, 16-pos. (4 x 4 pos.), width: 22.5 mm, color: Light gray
The illustration shows the housing versions Order No. Ord designation ME MAX 22,5 2-2 KMGY
EAN Pack 10 Pcs. Customs tariff Weight/Piece 0,05757 KG Catalog page information Page 139 (NTK-2005)
Product notes WEEE/Ro HS-compliant since: 04/12/2005
IMPORTANT : This date is valid for Customers in Germany only. Date Format is MM/DD/YYYY.Please contact your local in-country Phoenix Contact location or designated business partner for a Logistics Compliant date in your area.In order to guarantee delivery of Ro HS-Compliant product, please purchase Phoenix Contact parts from authorized Phoenix Contact representatives and distributors.
