This specialized PC terminal block provides a reliable electrical interconnection solution designed for industrial applications up to 10A at a 3.5mm pitch. This comprehensive manual details all technical specifications, including supported conductor cross-sections (solid and stranded), detailed connection data, and adherence to global safety standards like UL and CSA. It is essential reading for system integrators, electrical engineers, and technicians needing certified performance and robust power distribution components in their designs.

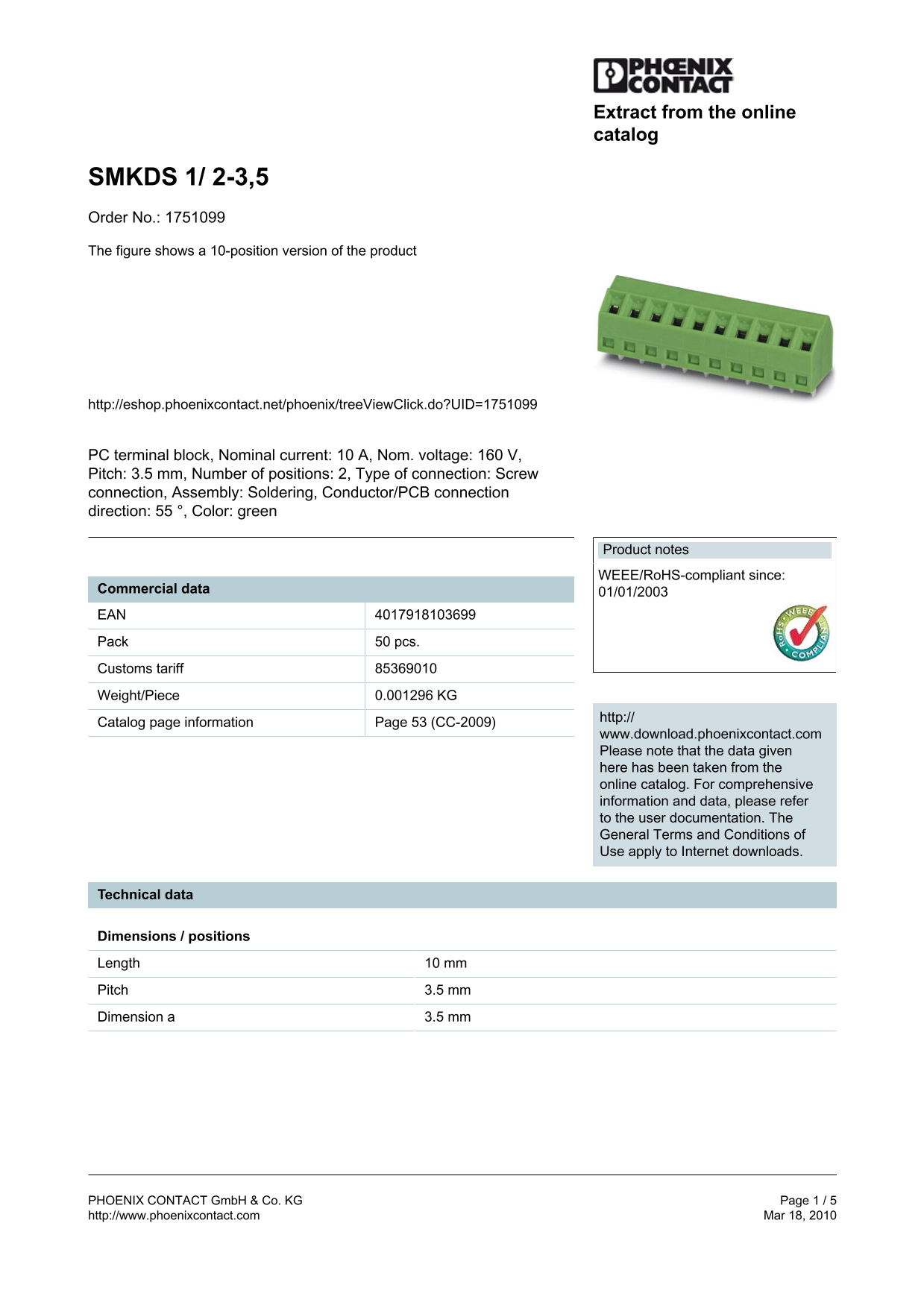

Page 1 Text Content
Extract from the online catalog
SMKDS 1/ 2-3,5 Order No.: 1751099 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1751099
PC terminal block, Nominal current: 10 A, Nom. voltage: 160 V, Pitch: 3.5 mm, Number of positions: 2, Type of connection: Screw connection, Assembly: Soldering, Conductor/PCB connection direction: 55 °, Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.001296 KG
http://
Catalog page information Page 53 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Length 10 mm Pitch 3.5 mm Dimension a 3.5 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 5 http://www.phoenixcontact.com Mar 18, 2010
Page Summary Contents For Phoenix Contact - SMKDS 1 2-3,5 Data Manual
Manual Details
| Brand | Phoenix |
|---|---|
| Pages | 5 |
| File Size | 132.20 KB |
| Published | July 16, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the minimum cross section for a solid conductor?
The solid conductor must be at least 0.14 mm².
What is the maximum allowable size for a stranded conductor connection?
The maximum size for a stranded conductor, without plastic sleeve, is 1 mm².
What screwdriver is recommended for connecting this terminal block?
A bladed screwdriver matching all screw terminal blocks up to 1.5 mm² cross section (0.4 x 2.5 mm) is recommended.
What are the maximum electrical ratings provided in the catalog listing?
The nominal current is 10 A, and the rated surge voltage is 2.5 kV for both III/3 and III/2 standards.
