Phoenix Contact SMKDS 1 6-3,81 Data Sheet
Summary
This durable, modular PC terminal block provides robust electrical connections for industrial control systems, supporting up to 10A at 160V with a 3.81mm pitch. The accompanying manual offers engineers and technicians comprehensive technical documentation, including detailed dimensional diagrams, full compliance certifications (UL, CSA), connection guidelines across various cross-sections, and specialized accessory recommendations. Essential for professional electrical assembly and reliable panel building wherever secure wiring connectivity is required.
Page 1 Text Content
Extract from the online catalog

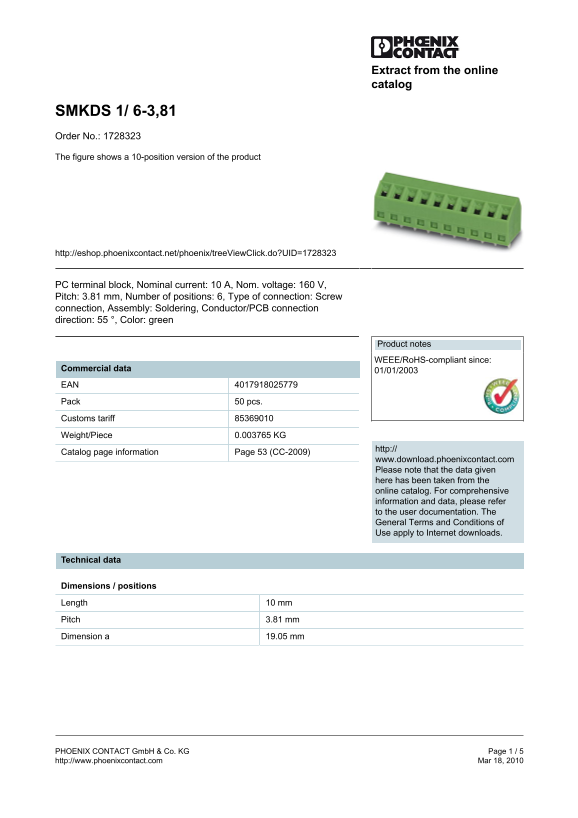

SMKDS 1/ 6-3,81 Order No.: 1728323 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1728323
PC terminal block, Nominal current: 10 A, Nom. voltage: 160 V, Pitch: 3.81 mm, Number of positions: 6, Type of connection: Screw connection, Assembly: Soldering, Conductor/PCB connection direction: 55 °, Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.003765 KG
http://
Catalog page information Page 53 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Length 10 mm Pitch 3.81 mm Dimension a 19.05 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 5 http://www.phoenixcontact.com Mar 18, 2010
