Phoenix Contact SMKDS 1 8-3,81 Data Sheet
Summary
This highly reliable 8-position PC terminal block is engineered for secure electrical connections, rated up to 10 A and compliant with RoHS/WEEE standards. It is designed for use in industrial and control systems requiring robust soldering and screw connection methods. The accompanying manual provides comprehensive technical data, including detailed conductor cross-section guidelines (solid and stranded), dimensional specifications, and critical safety certifications from leading bodies like UL and CSA. This documentation serves electrical engineers, automation designers, and technicians needing precise information for system planning and reliable integration.
Page 1 Text Content
Extract from the online catalog

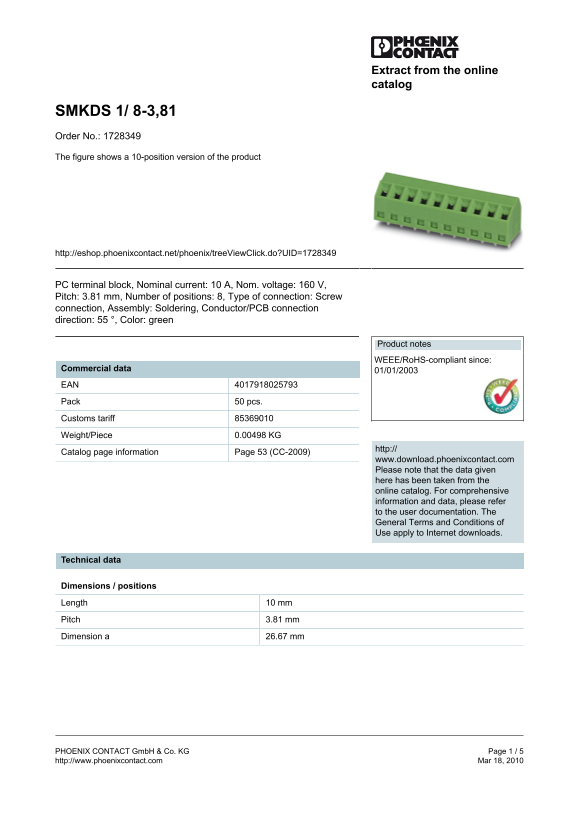

SMKDS 1/ 8-3,81 Order No.: 1728349 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1728349
PC terminal block, Nominal current: 10 A, Nom. voltage: 160 V, Pitch: 3.81 mm, Number of positions: 8, Type of connection: Screw connection, Assembly: Soldering, Conductor/PCB connection direction: 55 °, Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.00498 KG
http://
Catalog page information Page 53 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Length 10 mm Pitch 3.81 mm Dimension a 26.67 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 5 http://www.phoenixcontact.com Mar 18, 2010
