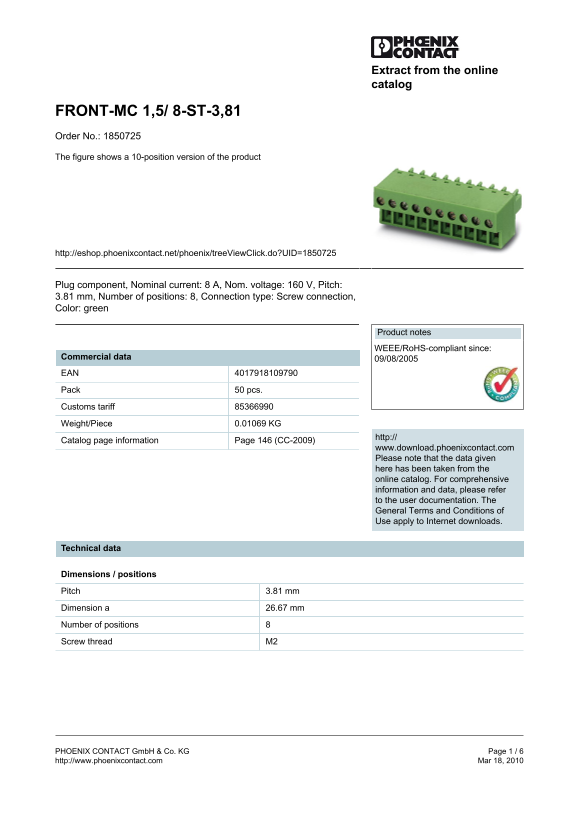

FRONT-MC 1,5/ 8-ST-3,81 Order No.: 1850725 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1850725
Plug component, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.81 mm, Number of positions: 8, Connection type: Screw connection, Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 09/08/2005 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.01069 KG
http://
Catalog page information Page 146 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 3.81 mm Dimension a 26.67 mm Number of positions Screw thread M2
