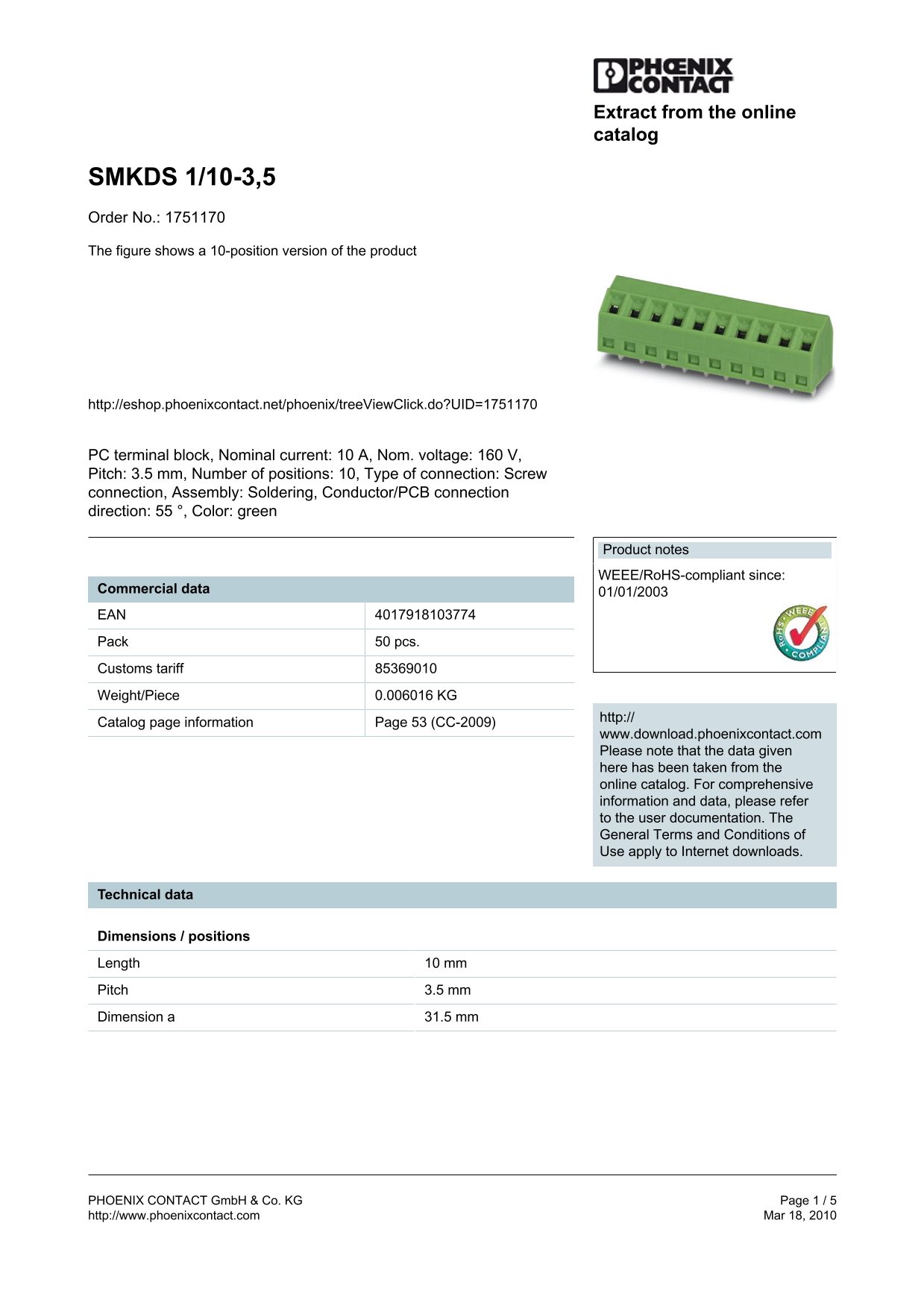

Phoenix Contact SMKDS 1 10-3,5 Data Sheet
Summary
This 10-position terminal block is designed for reliable, high-current electrical connections with a standard 3.5mm pitch and 10A nominal current rating. The accompanying manual provides comprehensive technical data crucial for system integrators, including detailed connection specifications, wiring tolerances (solid/stranded), full certification compliance (UL, CSA), and compatible accessories. It serves as an essential resource for electrical engineers and automation professionals building durable and standardized control systems.
Page 1 Text Content
Extract from the online catalog
SMKDS 1/10-3,5 Order No.: 1751170 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1751170
PC terminal block, Nominal current: 10 A, Nom. voltage: 160 V, Pitch: 3.5 mm, Number of positions: 10, Type of connection: Screw connection, Assembly: Soldering, Conductor/PCB connection direction: 55 °, Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.006016 KG
http://
Catalog page information Page 53 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Length 10 mm Pitch 3.5 mm Dimension a 31.5 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 5 http://www.phoenixcontact.com Mar 18, 2010
