Phoenix Contact - PST 1,0 7-3,5 Data Sheet
Summary
This terminal block is an industrial-grade electrical component designed for reliable, soldermount circuit connection in control panels. The accompanying manual provides comprehensive engineering support, including precise dimensional drawings, wiring plans, detailed derating curves, and compliance certifications (UL/CSA). It covers all necessary technical data points—such as load limits and voltages—to ensure safe and efficient system integration. Ideal for electrical engineers, industrial automation specialists, and technicians designing high-performance electronic systems.
Page 1 Text Content
Extract from the online catalog

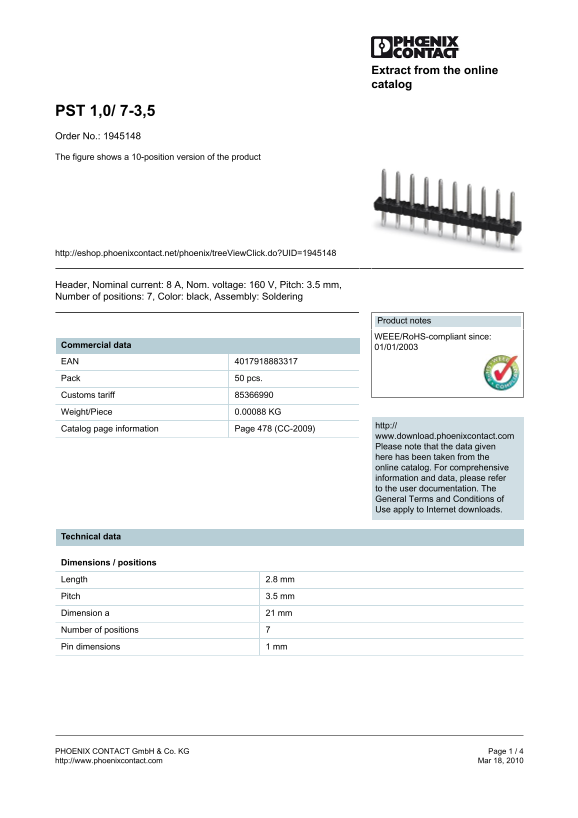

PST 1,0/ 7-3,5 Order No.: 1945148 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1945148
Header, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.5 mm, Number of positions: 7, Color: black, Assembly: Soldering
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.00088 KG
http://
Catalog page information Page 478 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Length 2.8 mm Pitch 3.5 mm Dimension a 21 mm Number of positions Pin dimensions 1 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 4 http://www.phoenixcontact.com Mar 18, 2010
